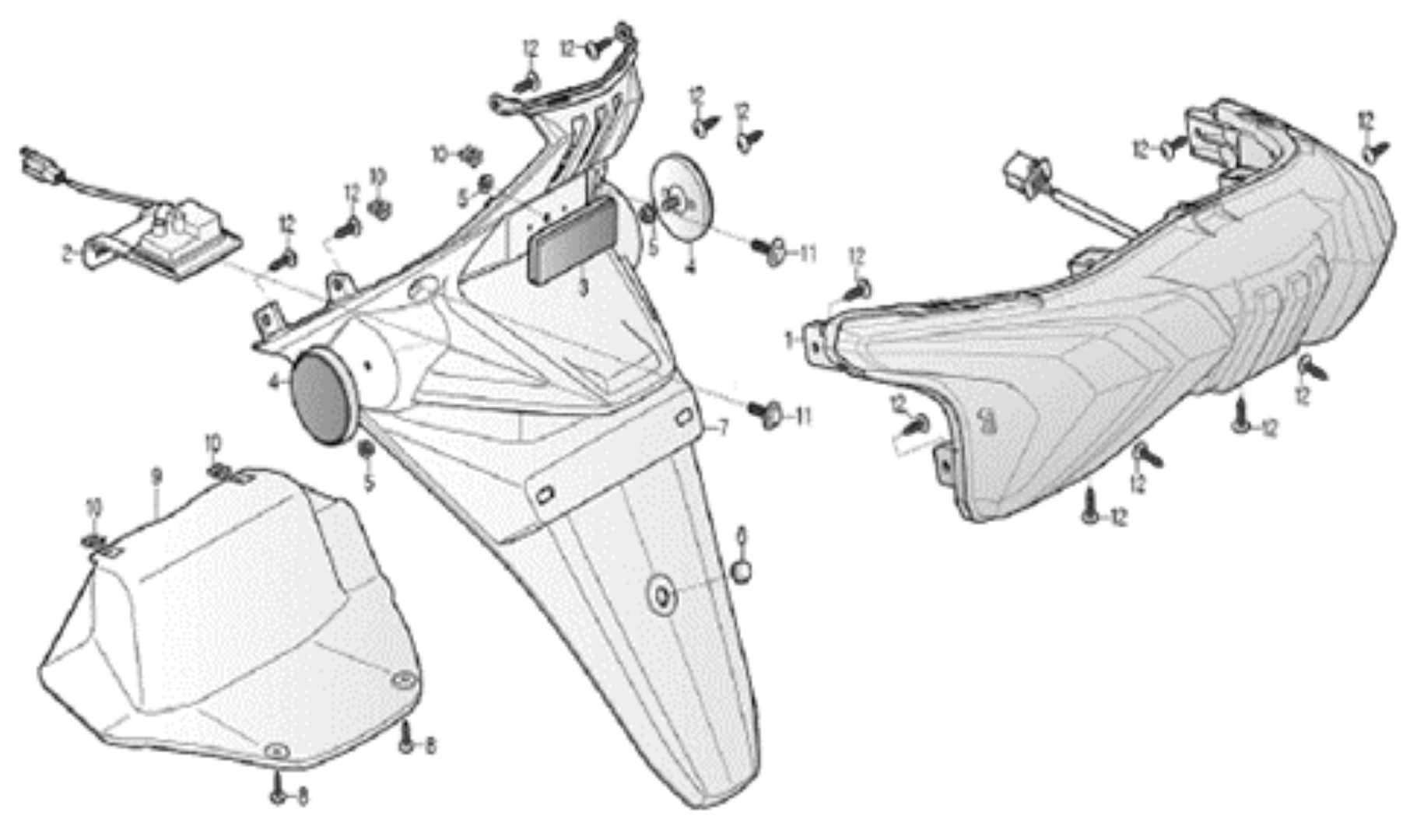

Rear Fender and Tail Light

#1 - Light Assembly, Tail for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 1Diagram: Rear Fender and Tail Light

#2 - Licenselamp Assembly for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 2Diagram: Rear Fender and Tail Light

#3 - Reflector, Rear Reflex for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 3Diagram: Rear Fender and Tail Light

#4 - Reflector, Sidereflex for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 4Diagram: Rear Fender and Tail Light

#5 - Nut, Flange, 6Mm for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 5Diagram: Rear Fender and Tail Light

#6 - Rubber, Licenseplate for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 6Diagram: Rear Fender and Tail Light

#7 - Fender, Rear for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 7Diagram: Rear Fender and Tail Light

#8 - Screw, Tapping, 4.2X13 for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 8Diagram: Rear Fender and Tail Light

#9 - Mudguard, Rear for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 9Diagram: Rear Fender and Tail Light

#10 - Nut, Spring, 4Mm for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 10Diagram: Rear Fender and Tail Light

#11 - Bolt, Washer, 6X16 for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 11Diagram: Rear Fender and Tail Light

#12 - Screw, Tapping, 4.8X13 for E-RT3 Rear Fender and Tail LightSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 12Diagram: Rear Fender and Tail Light
