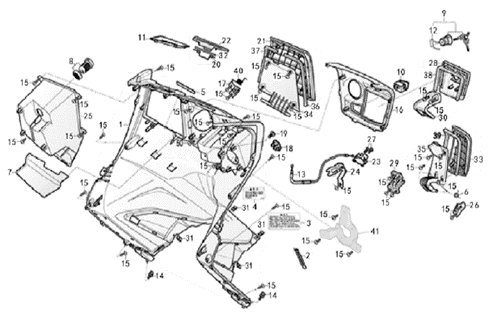

Center Guard

#1 - Box, Inner for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 1Diagram: Center Guard

#2 - Clip2X60 for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 2Diagram: Center Guard

#3 - Mark, Drivecaution for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 3Diagram: Center Guard

#4 - Label, Innerboxcaution for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 4Diagram: Center Guard

#5 - Spongerubber, Innerbox for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 5Diagram: Center Guard

#6 - Spring, Left Side Innerlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 6Diagram: Center Guard

#7 - Mat, Right Side Lidbox for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 7Diagram: Center Guard

#8 - Portcomp., Usb for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 8Diagram: Center Guard

#9 - Keyset, Innerboxlock for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 9Diagram: Center Guard

#10 - Switch, Seatopen for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 10Diagram: Center Guard

#11 - Cover, Engine Coolant for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 11Diagram: Center Guard

#12 - Spring, Lockkeysetting for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 12Diagram: Center Guard

#13 - Cable, Fuellidlock for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 13Diagram: Center Guard

#14 - Bolt, Washer, 6X16 for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 14Diagram: Center Guard

#15 - Screw, Tapping, 5X12 for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 15Diagram: Center Guard

#16 - Cover, Innercenter for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 16Diagram: Center Guard

#17 - Stay, Right Side Innerlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 17Diagram: Center Guard

#18 - Plug Cover for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 18Diagram: Center Guard

#19 - Bolt, Flange, 6X16 for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 19Diagram: Center Guard

#20 - Spring, Right Side Lidopenhinge for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 20Diagram: Center Guard

#21 - Lid, Right Side Innerbox for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 21Diagram: Center Guard

#22 - Hinge, Right Side Lidopen for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 22Diagram: Center Guard

#23 - Lock Assembly, Left Side Lid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 23Diagram: Center Guard

#24 - Stopper, Fuelcable for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 24Diagram: Center Guard

#25 - Box, Right Side Lid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 25Diagram: Center Guard

#26 - Stay, Left Side Innerlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 26Diagram: Center Guard

#27 - Screw, Special, 5X14 for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 27Diagram: Center Guard

#28 - Lid, Centerinnerbox for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 28Diagram: Center Guard

#29 - Stay, Lidhinge for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 29Diagram: Center Guard

#30 - Hinge, Centerlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 30Diagram: Center Guard

#31 - Nut, Spring, 4Mm for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 31Diagram: Center Guard

#32 - Pin, Right Side Lidopenhinge for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 32Diagram: Center Guard

#33 - Lid, Left Side Innerbox for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 33Diagram: Center Guard

#34 - Lid, Right Side Inner for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 34Diagram: Center Guard

#35 - Lid, Left Side Inner for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 35Diagram: Center Guard

#36 - Seala, Right Side Innerboxlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 36Diagram: Center Guard

#37 - Sealb, Right Side Innerboxlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 37Diagram: Center Guard

#38 - Seal, Centerinnerboxlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 38Diagram: Center Guard

#39 - Seal, Left Side Innerboxlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 39Diagram: Center Guard

#40 - Spring, Right Side Innerlid for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 40Diagram: Center Guard

#41 - Charging Port Bracket for E-RT3 Center GuardSold EachCompatible with CSC Motorcycles E-RT3 Electric ScooterPictured Diagram Number: 41Diagram: Center Guard
