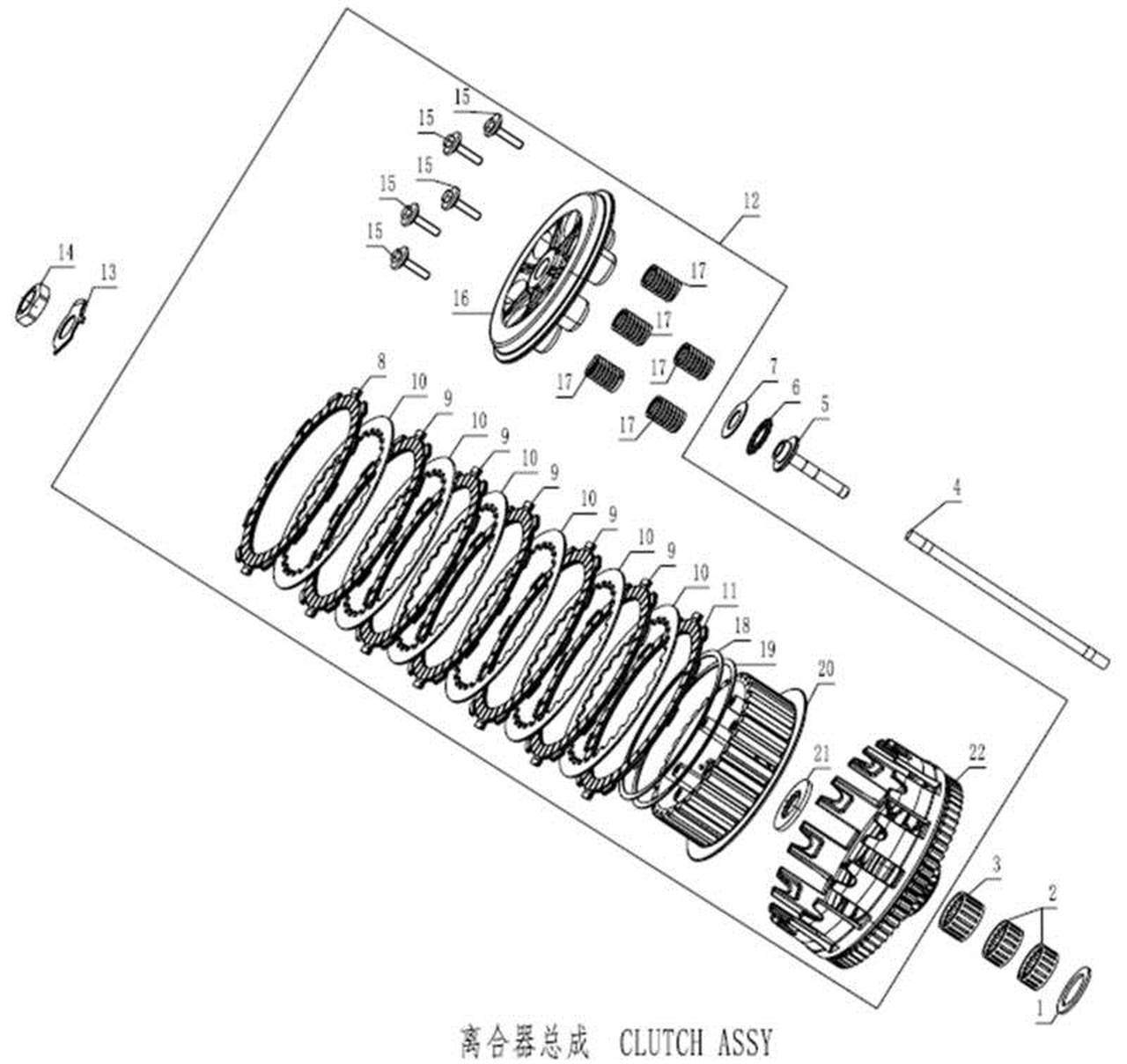

CLUTCH ASSY

Part: Z406-101SOLD EACHPART #1 ON ILLUSTRATION: Washer, ϕ25x1.8xϕ36For: RX4

Part: Z406-102SOLD EACHPART #2 ON ILLUSTRATION: Needle BeaRing, (K25x29x10)For: RX4

Part: Z406-103SOLD EACHPART #3 ON ILLUSTRATION: Needle BeaRing, (K25x29x13)For: RX4

Part: Z406-104SOLD EACHPART #4 ON ILLUSTRATION: Pushing Rod ClutchFor: RX4

Part: Z406-105SOLD EACHPART #5 ON ILLUSTRATION: Rod Clutch PushFor: RX4

Part: Z406-106SOLD EACHPART #6 ON ILLUSTRATION: Bearing, (Axk1528)For: RX4

Part: Z406-107SOLD EACHPART #7 ON ILLUSTRATION: Washer, ϕ15x1xϕ28For: RX4

This is a clutch kit with (1) Part #8 [Outside - 5.7mm x 105mm],  (5) Part #9 [5.1mm x 10.5mm], & (1) Part #11 [Inside - 5.7mm x 8.2mm]. Steel plates sold separately. Part: Z406-123SOLD AS KITPART #8 #9 & #11 ON ILLUSTRATION: Clutch Disc...

These are the 6 steel clutch plates (Part #10 on the diagram) for the RX4. The clutch disc kit is sold seperately.  Part: Z406-124SOLD AS KITPART #10 ON ILLUSTRATION: Clutch Steels For: RX4

Part: Z406-113SOLD EACHPART #13 ON ILLUSTRATION: Stop Washer, ClutchFor: RX4

Part: Z406-114SOLD EACHPART #14 ON ILLUSTRATION: Nut M18For: RX4

Part: Z406-115SOLD EACHPART #15 ON ILLUSTRATION: Clutch disc boltFor: RX4

Part: Z406-116SOLD EACHPART #16 ON ILLUSTRATION: Pressure Plate ClutchFor: RX4

Part: Z406-117SOLD EACHPART #17 ON ILLUSTRATION: Pressure Plate Clutch ***SPRING***For: RX4

Part: Z406-118SOLD EACHPART #18 ON ILLUSTRATION: Dish Washer, ClutchFor: RX4

Part: Z406-119SOLD EACHPART #19 ON ILLUSTRATION: Line seat of Dish Washer, ClutchFor: RX4

Part: Z406-120SOLD EACHPART #20 ON ILLUSTRATION: Center Sleeve ClutchFor: RX4

Part: Z406-122SOLD EACHPART #22 ON ILLUSTRATION: Out Case Assembly ClutchFor: RX4
