TT250 NECK BEARING REPLACMENT
TOOLS REQUIRED:
-
22mm Wrench
-
17mm Wrench
-
5mm Allen
-
6mm Allen
-
8mm Socket
-
10mm Socket
-
12mm Socket
-
17mm Socket
-
Hammer
-
Motorcycle Jack
-
Phillips Screwdriver
-
Flathead Screwdriver

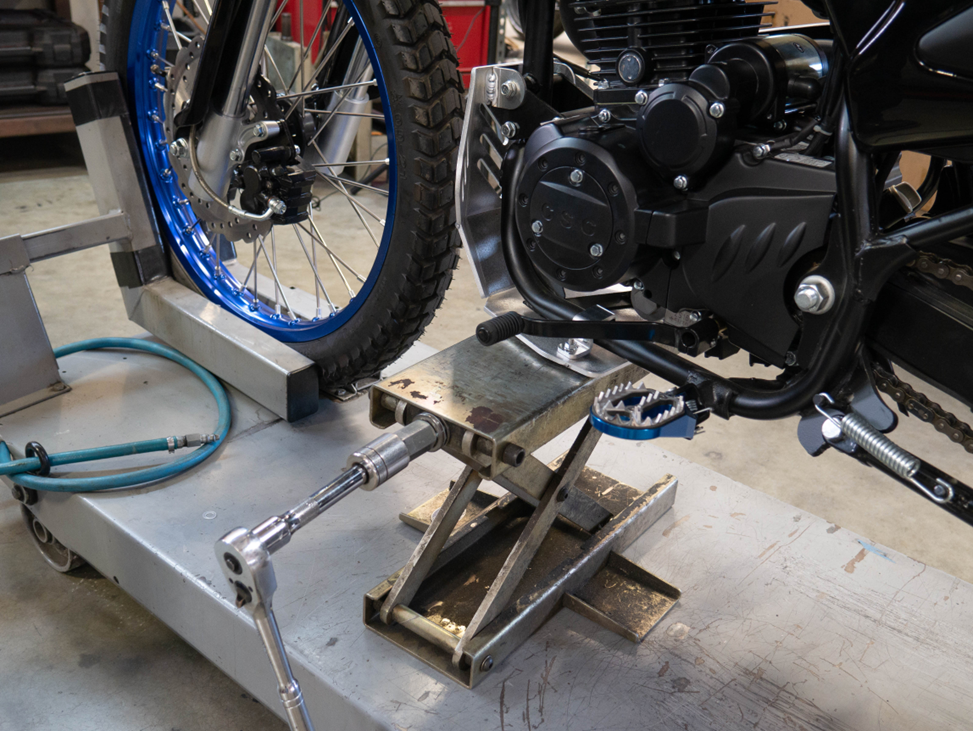

Lift the front wheel of the motorcycle using a motorcycle jack.

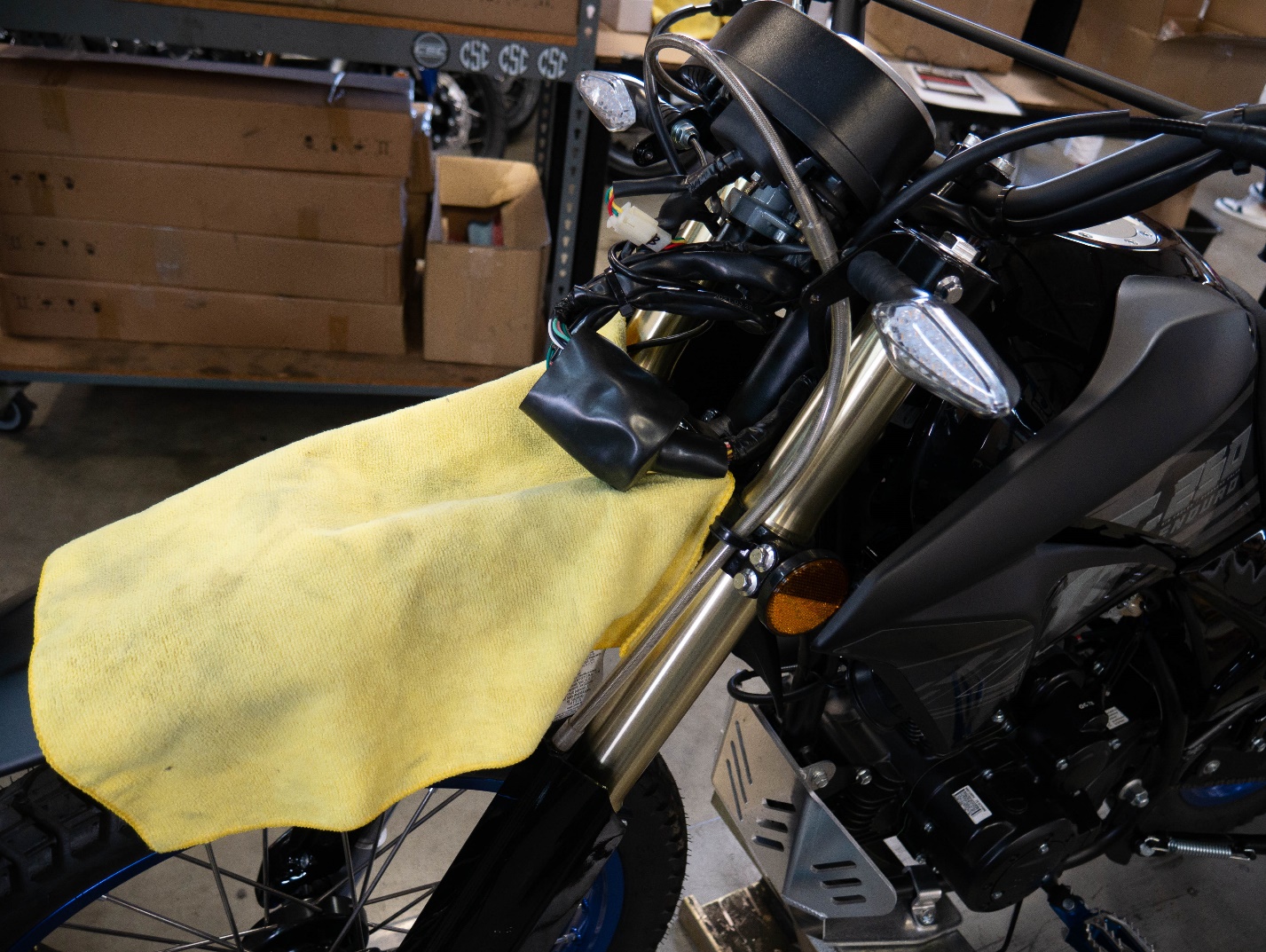

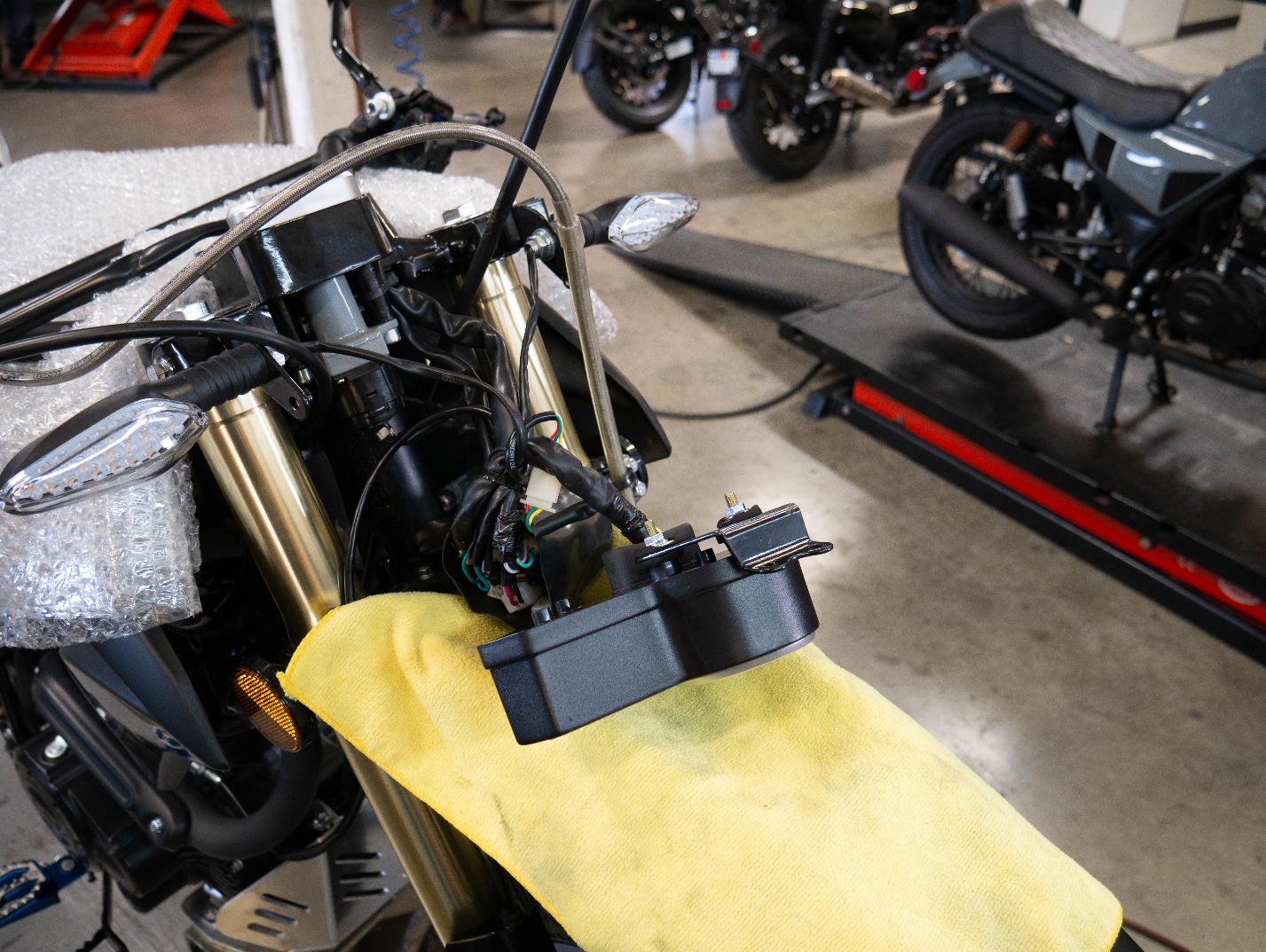

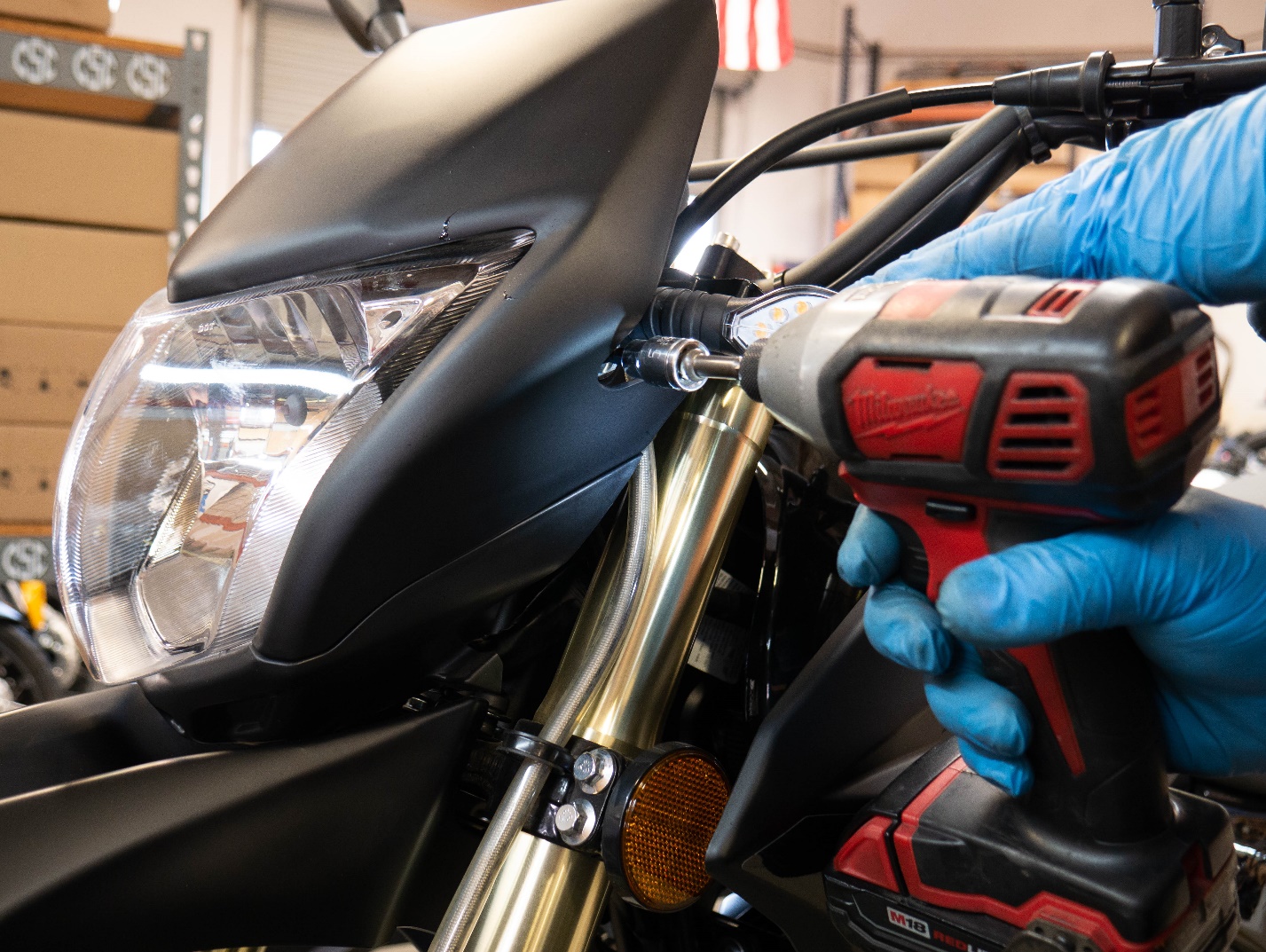

Remove the headlamp assembly mounts using a 5mm Allen.

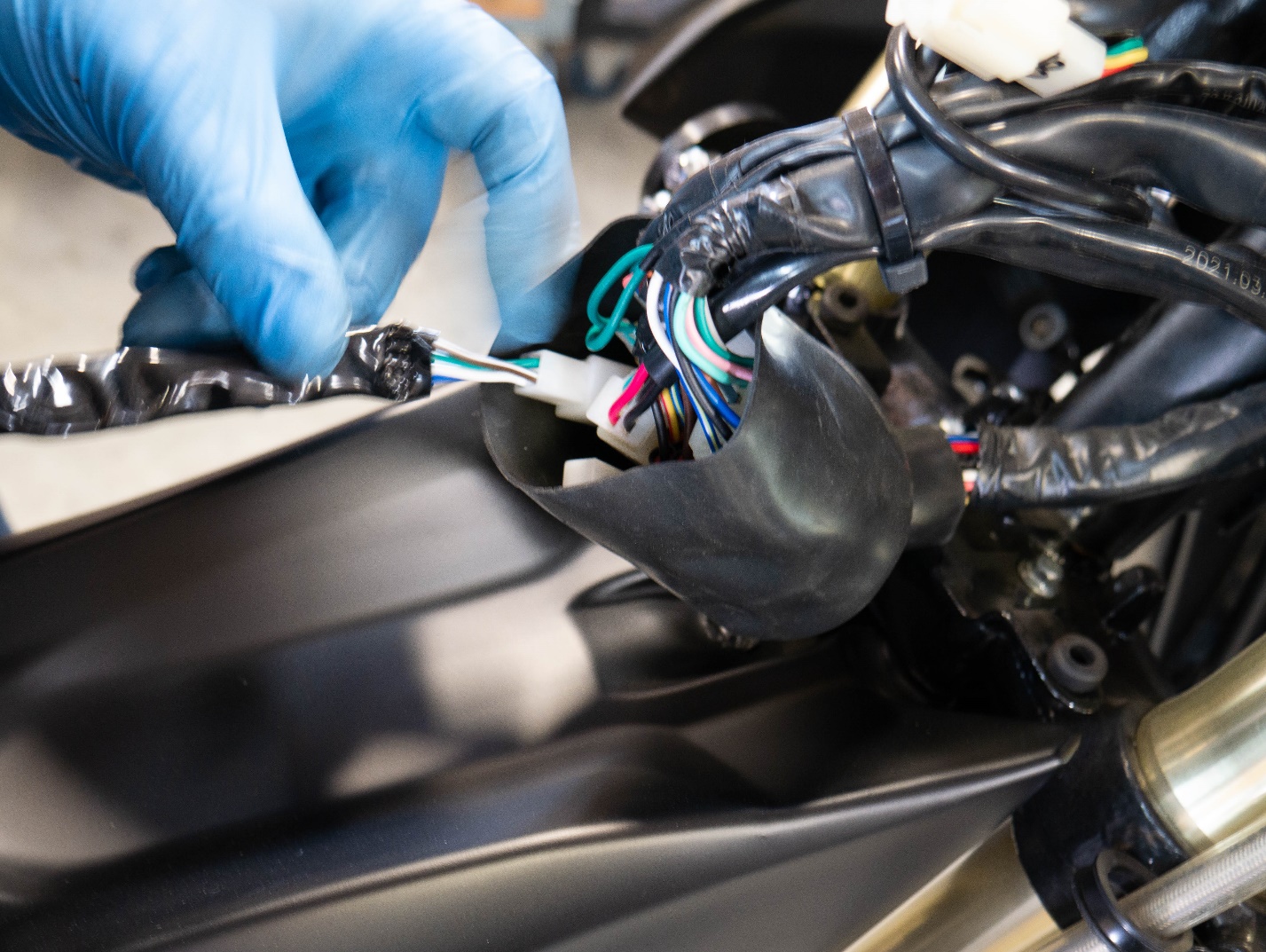

Disconnect the headlamp electrical connector.

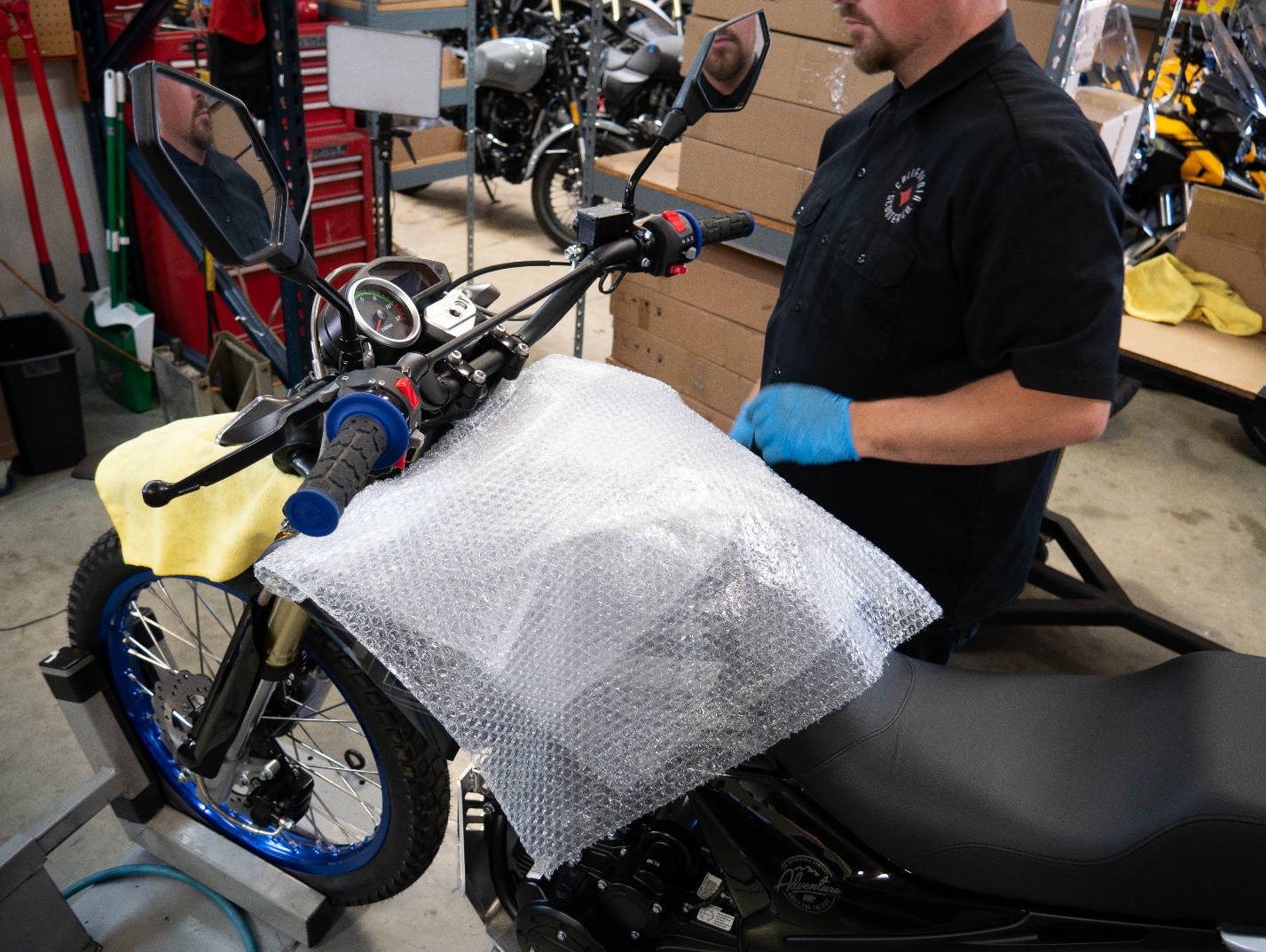

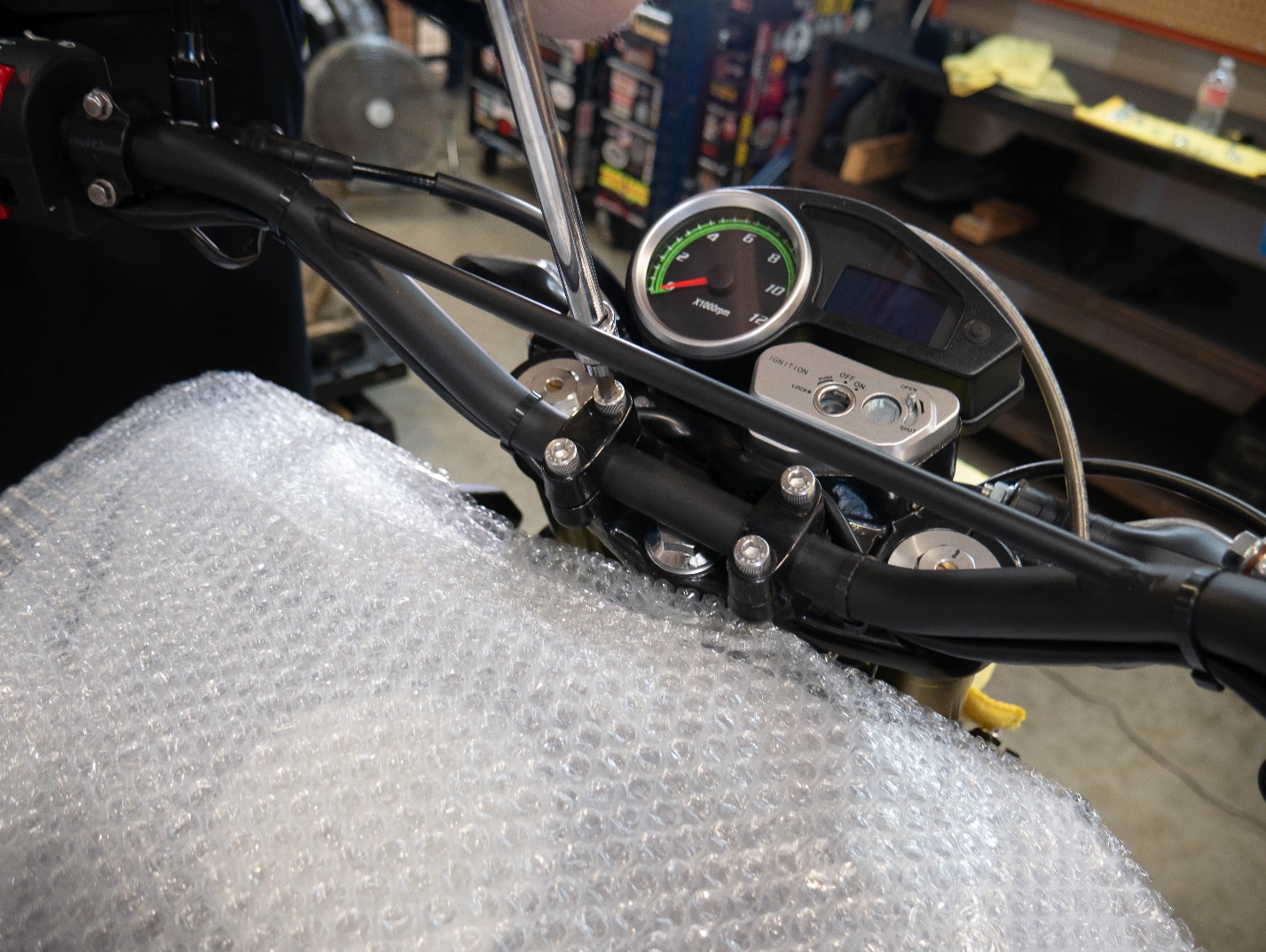

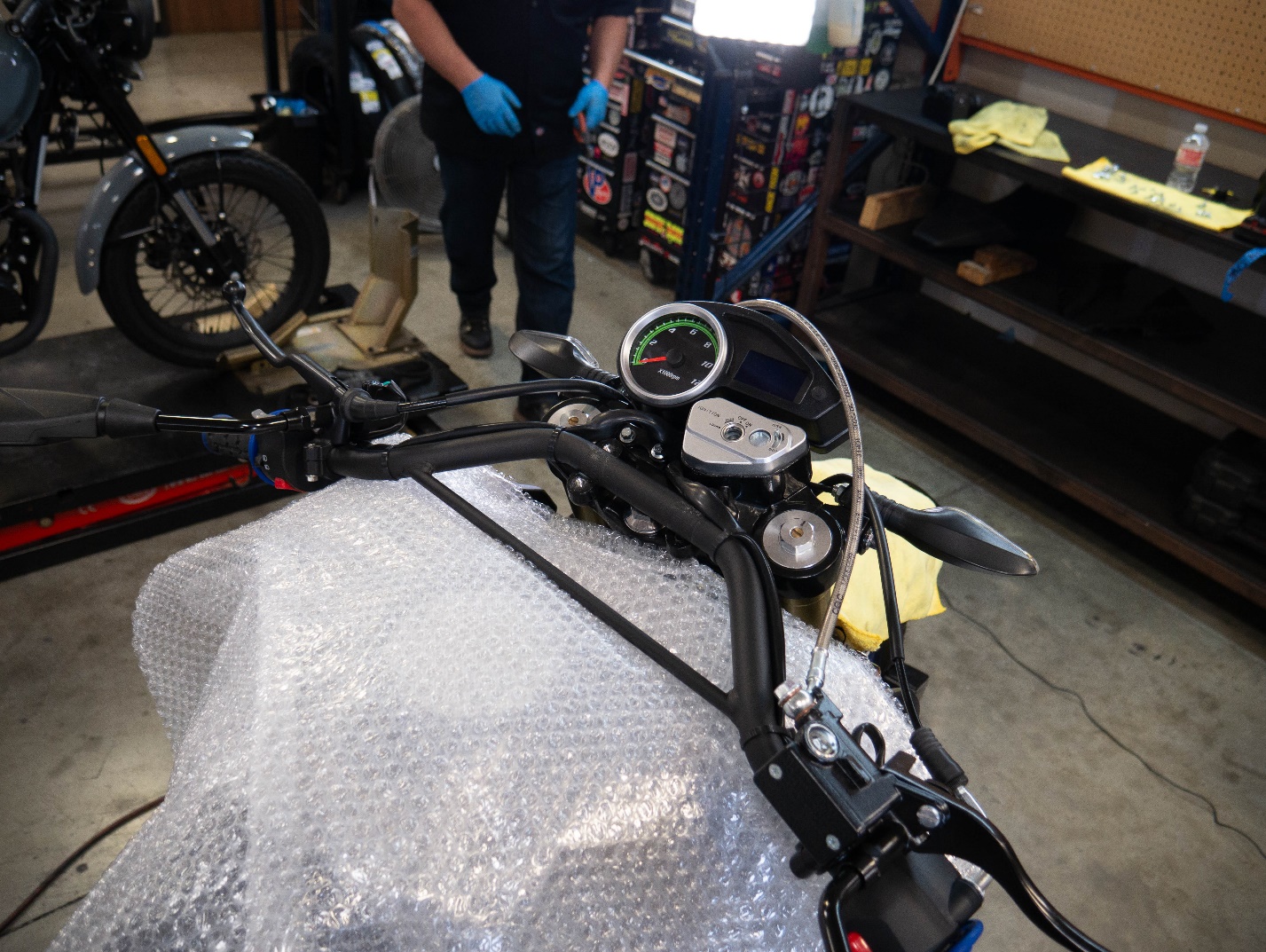

Protect the gas tank while removing the handlebar.

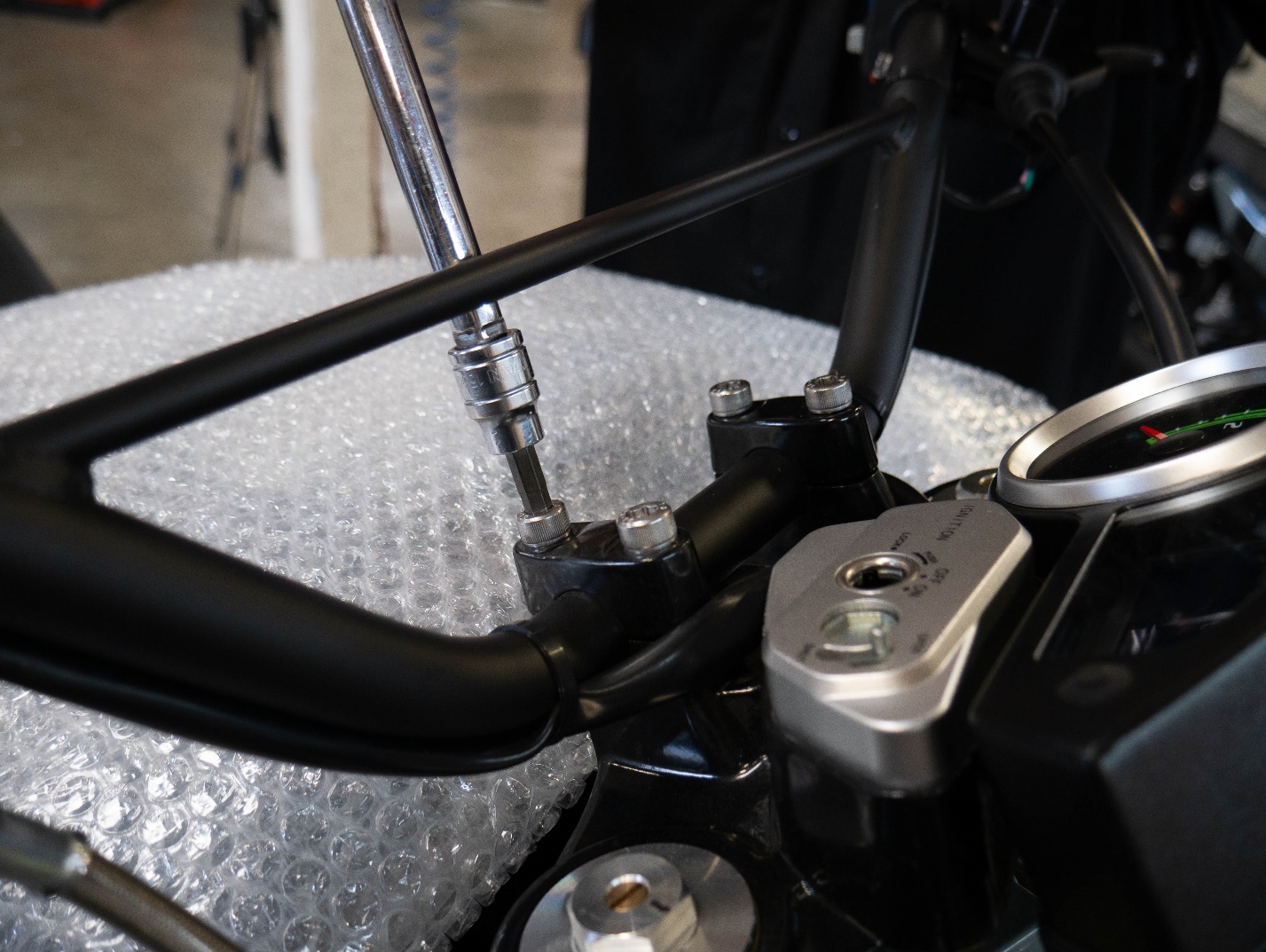

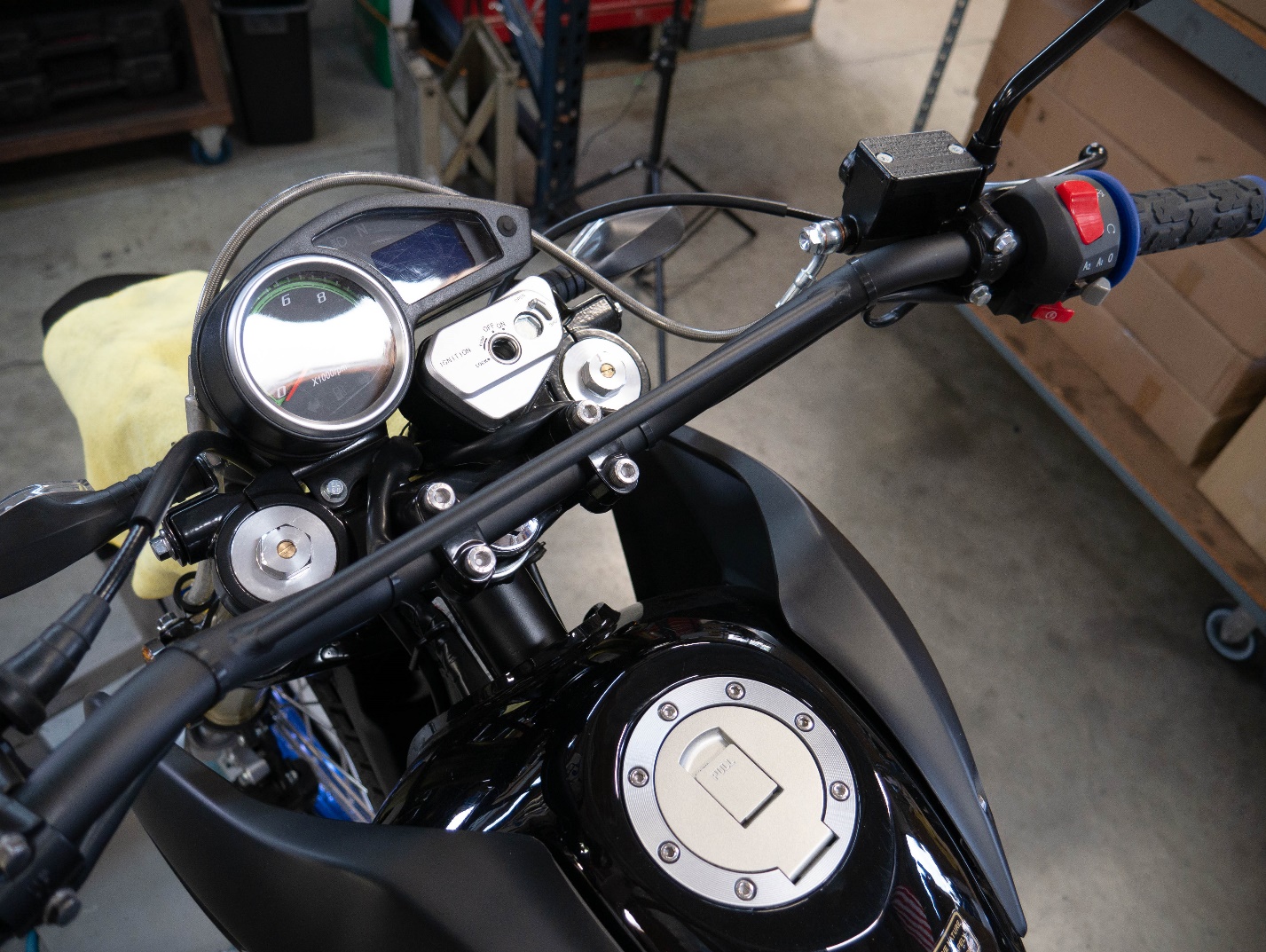

Remove the handlebar clamp using a 6mm Allen.

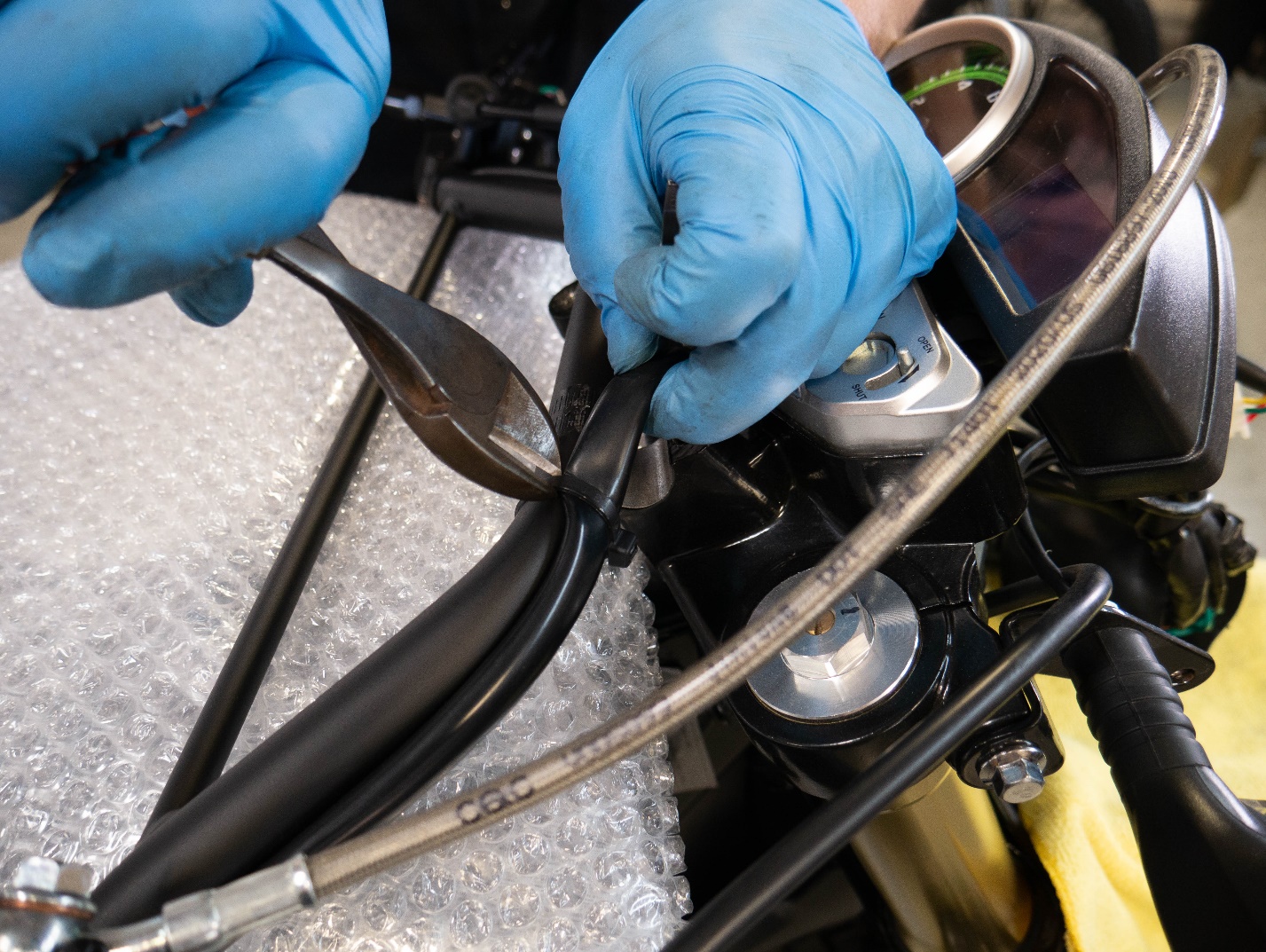

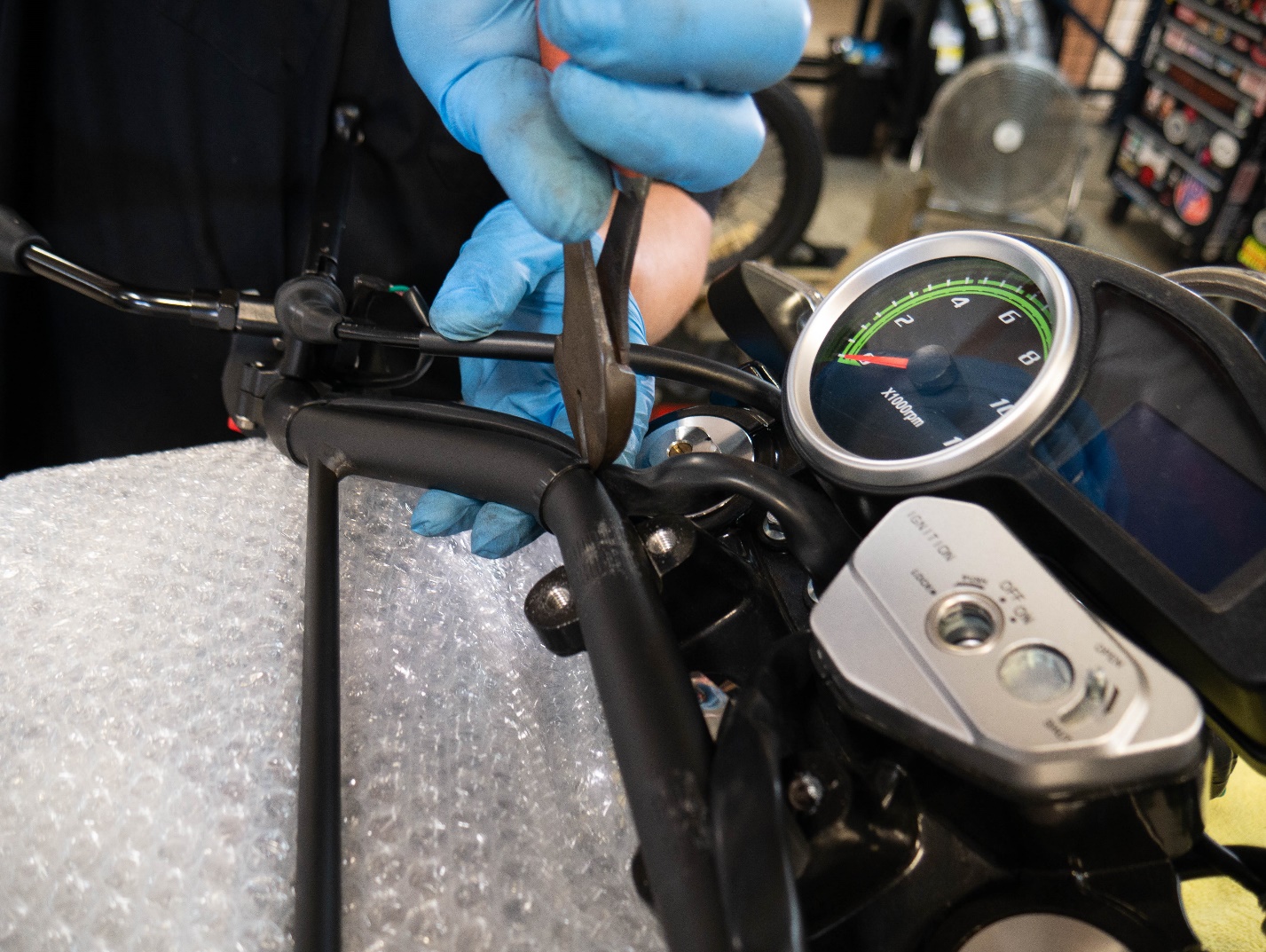

Remove the left-side zip ties.
Remove the right-side zip ties.

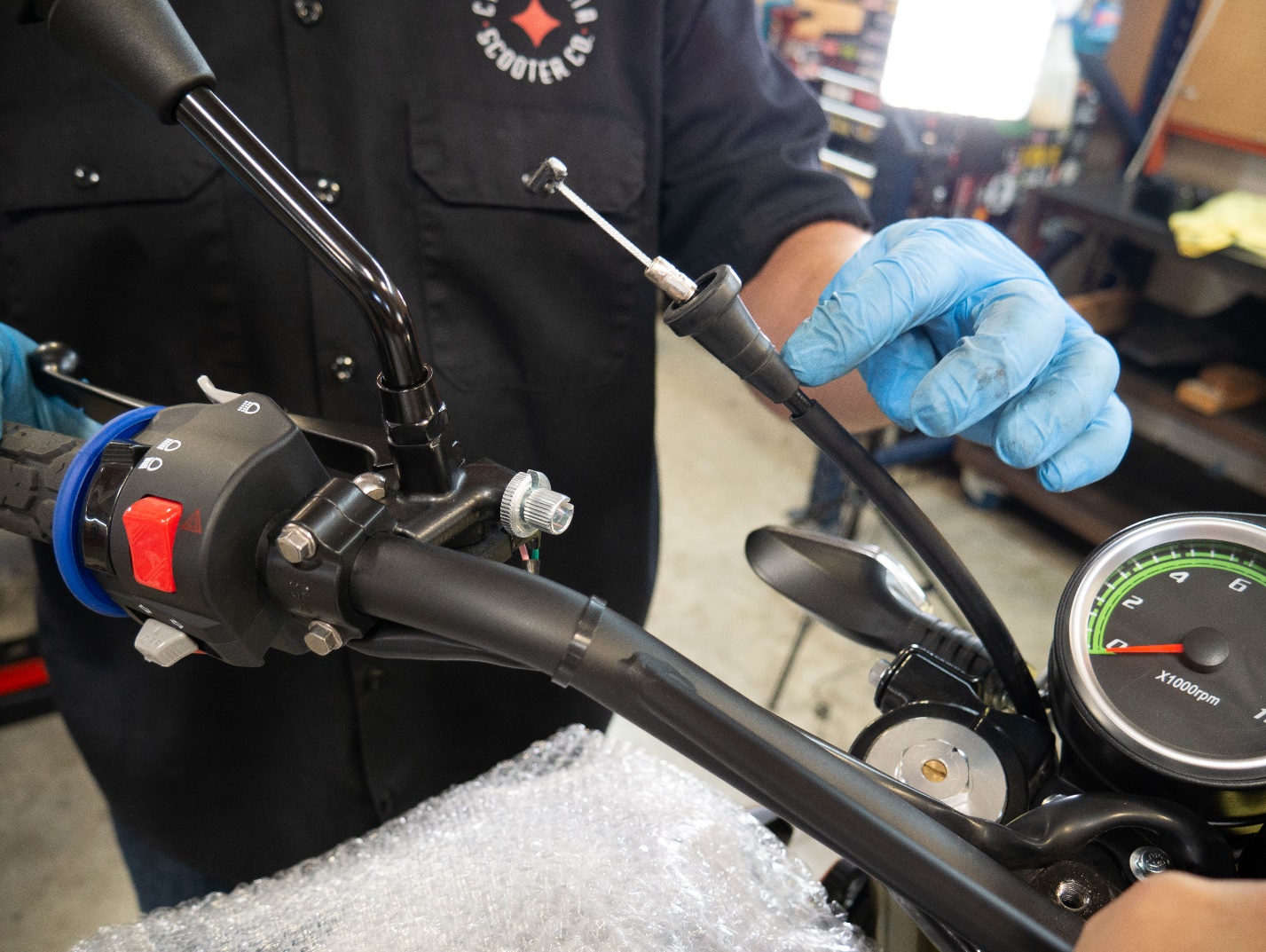

Disconnect the clutch cable from the clutch perch/lever.

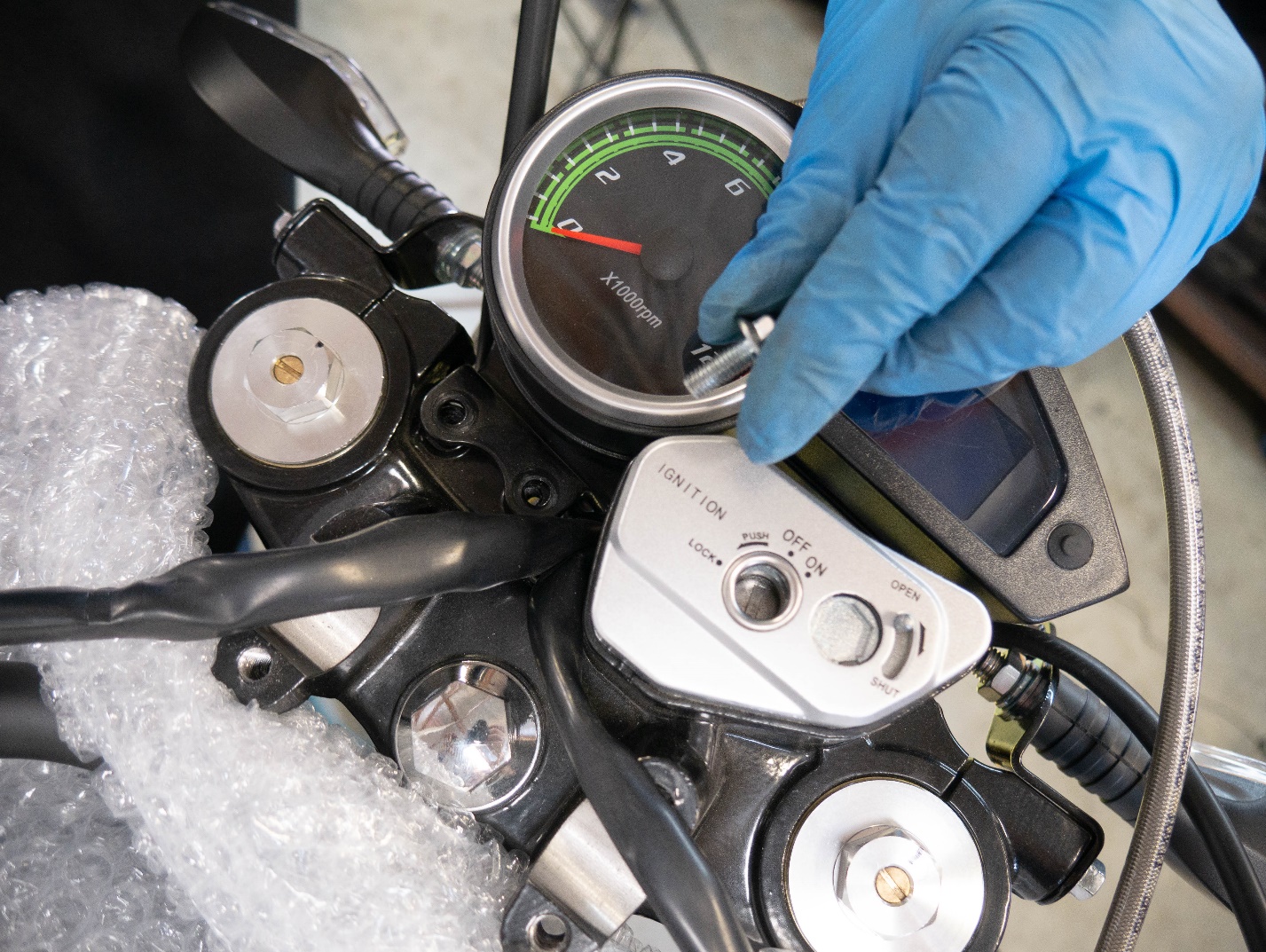

Remove the dash mounts with an 8mm socket.

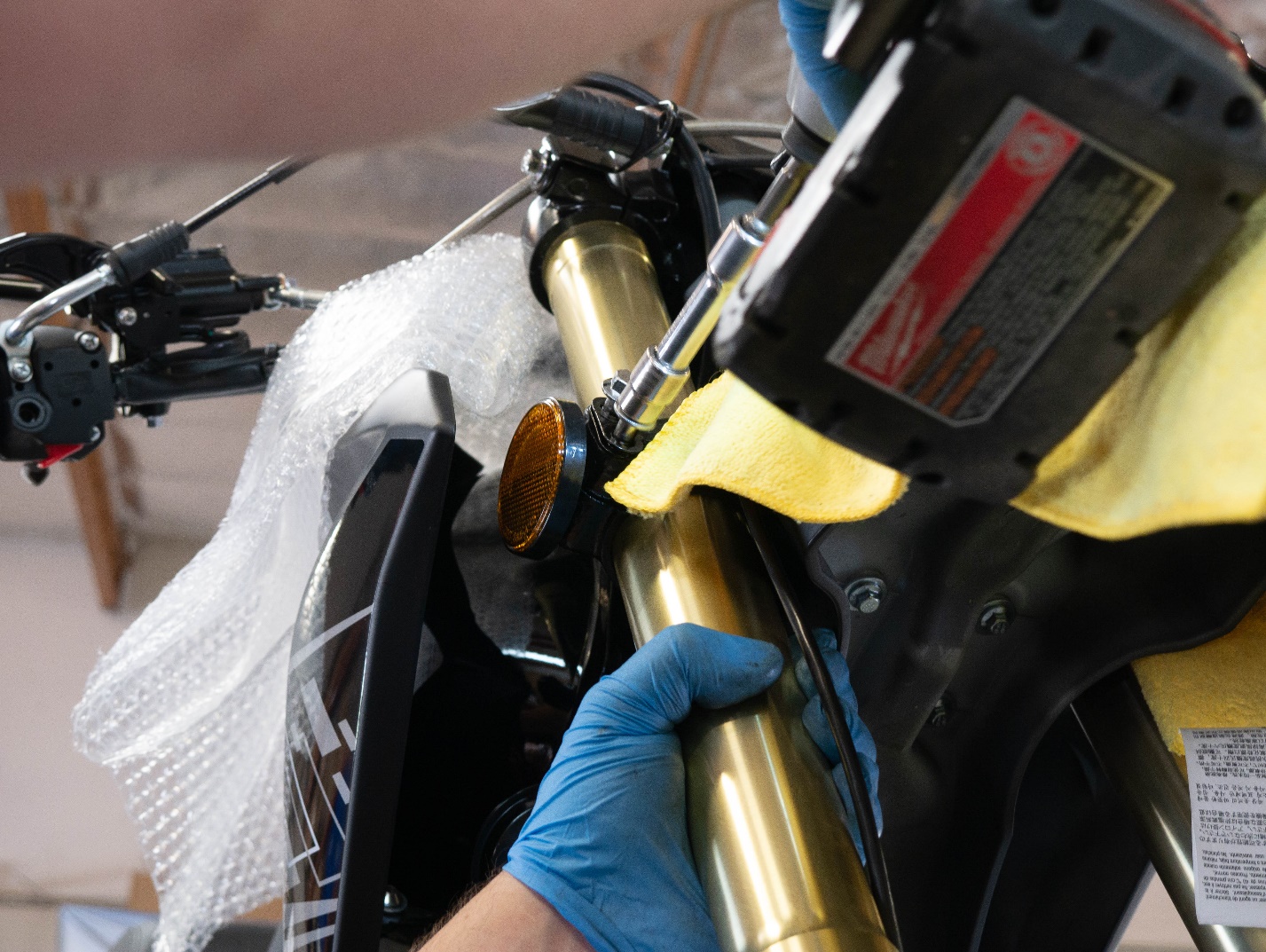

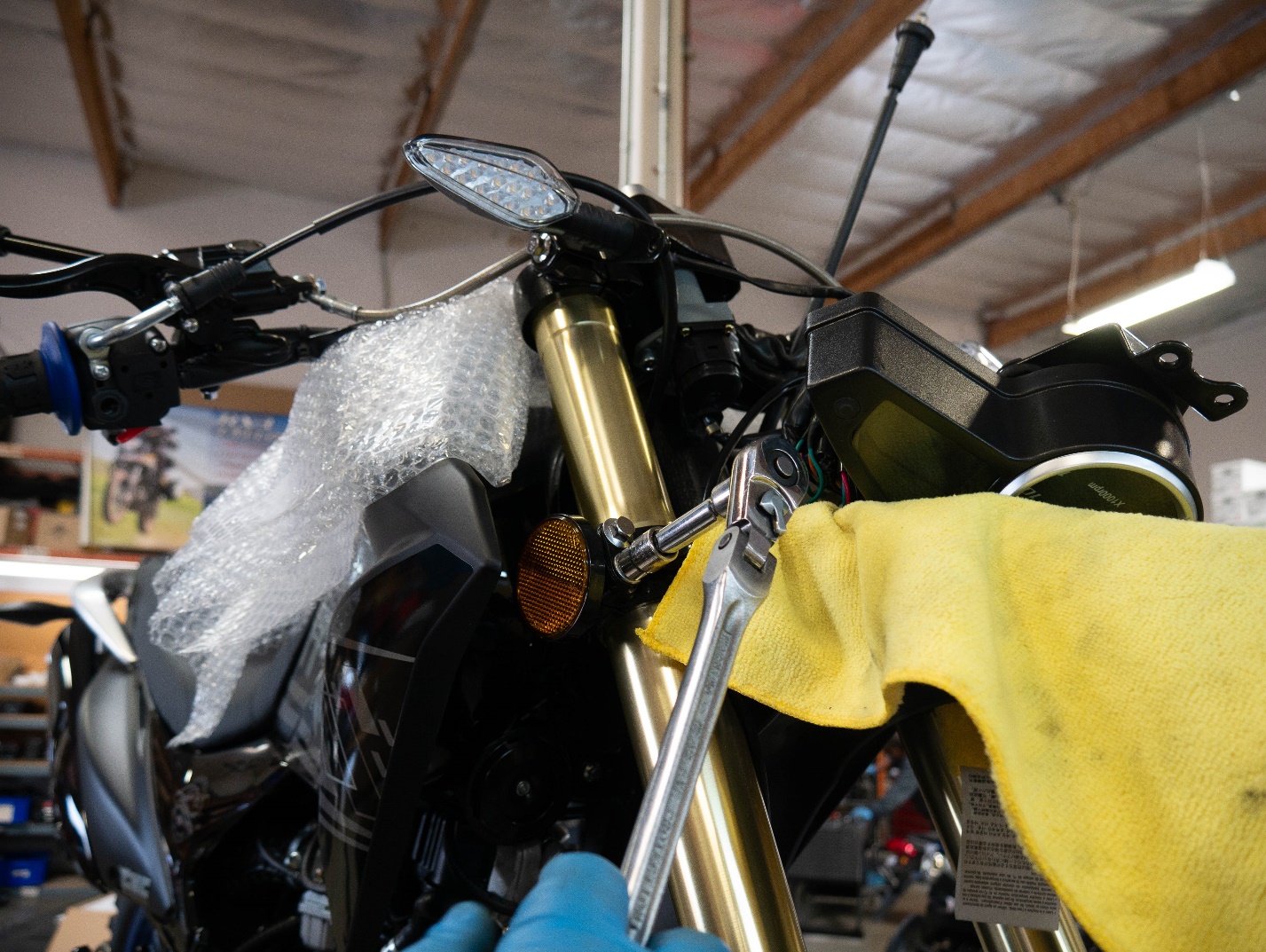

Loosen the top triple tree fork tube pinch bolts using a 10mm socket.

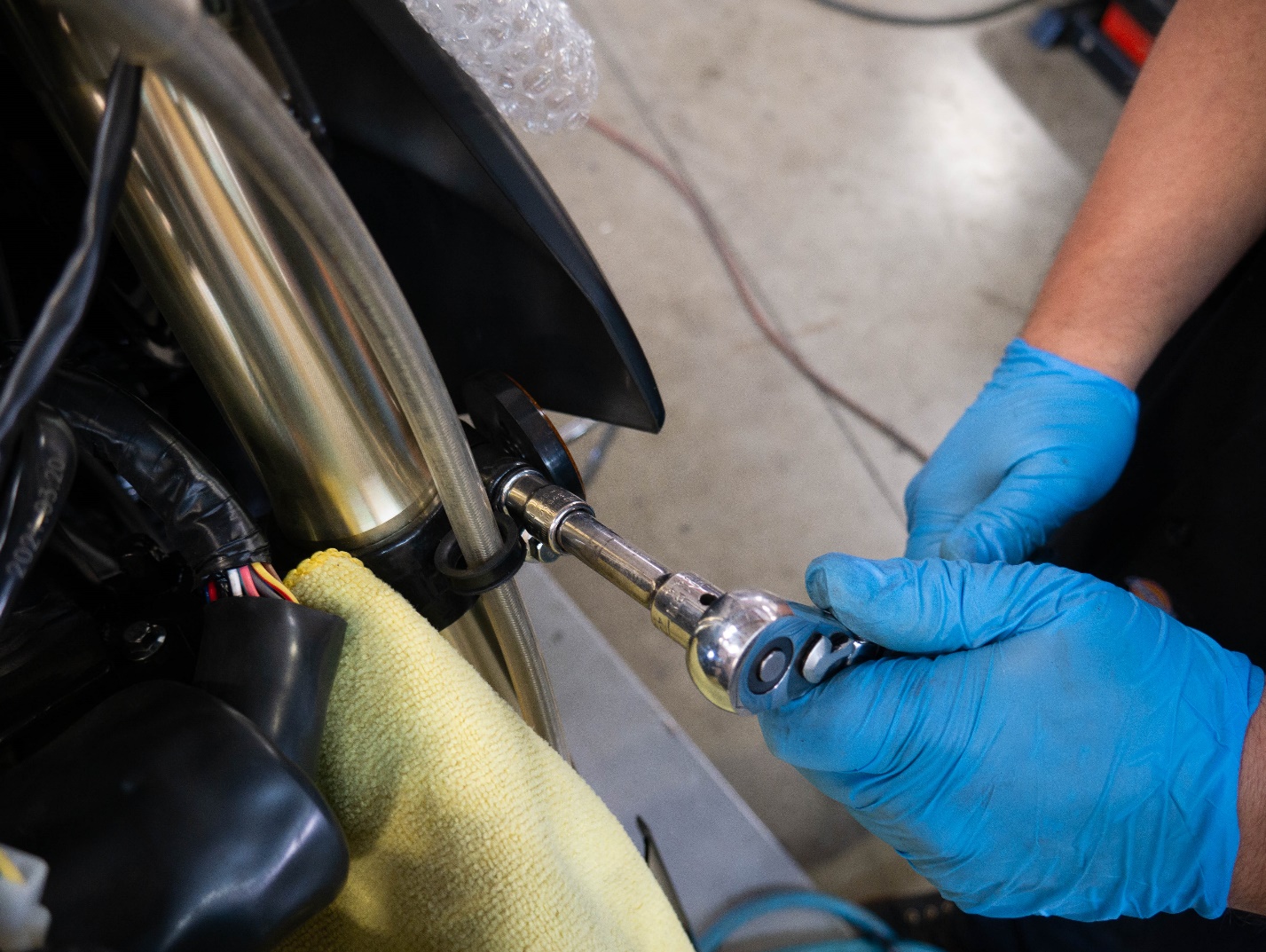

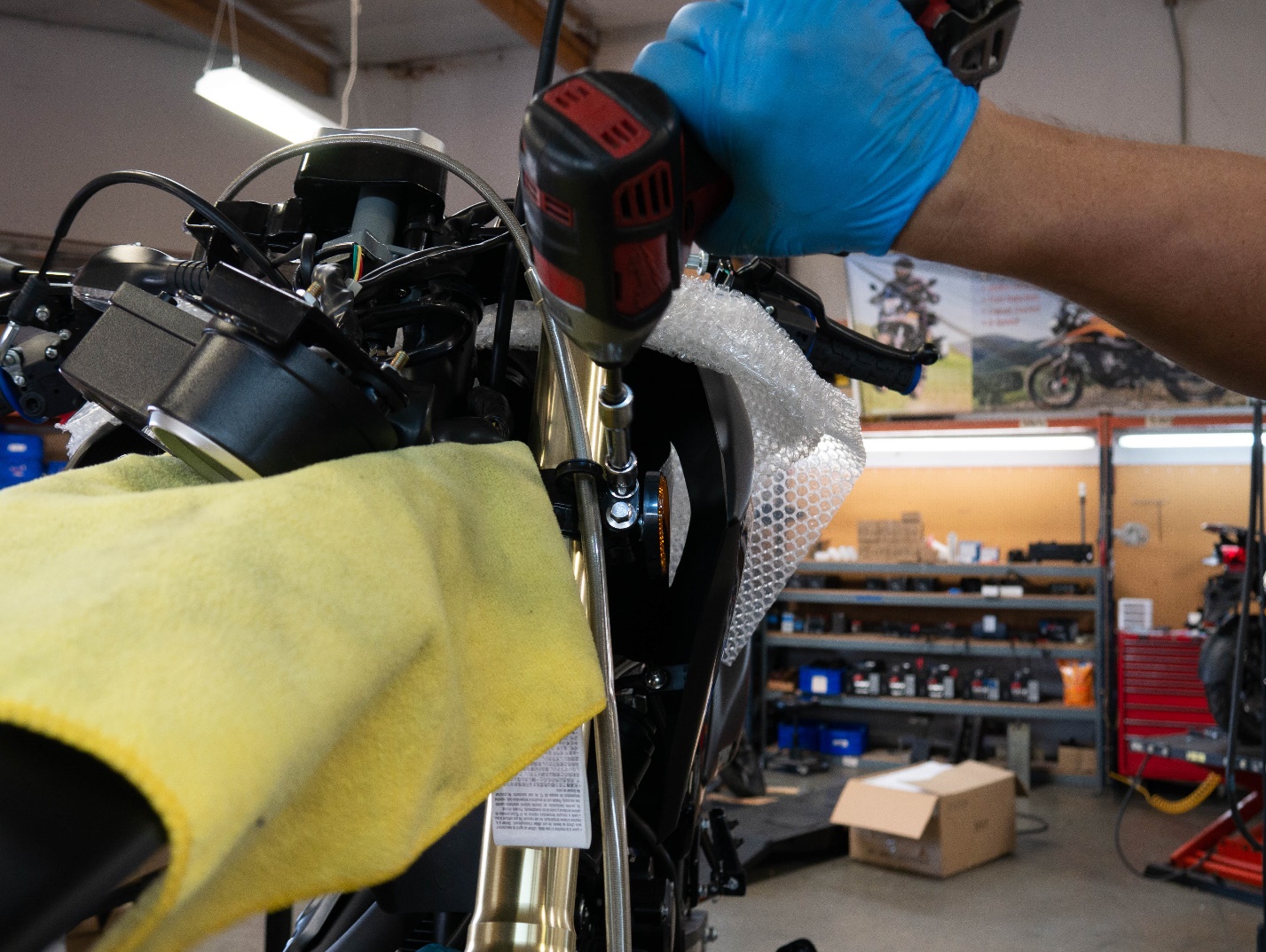

Loosen the lower triple tree fork tube pinch bolts using a 10mm socket.

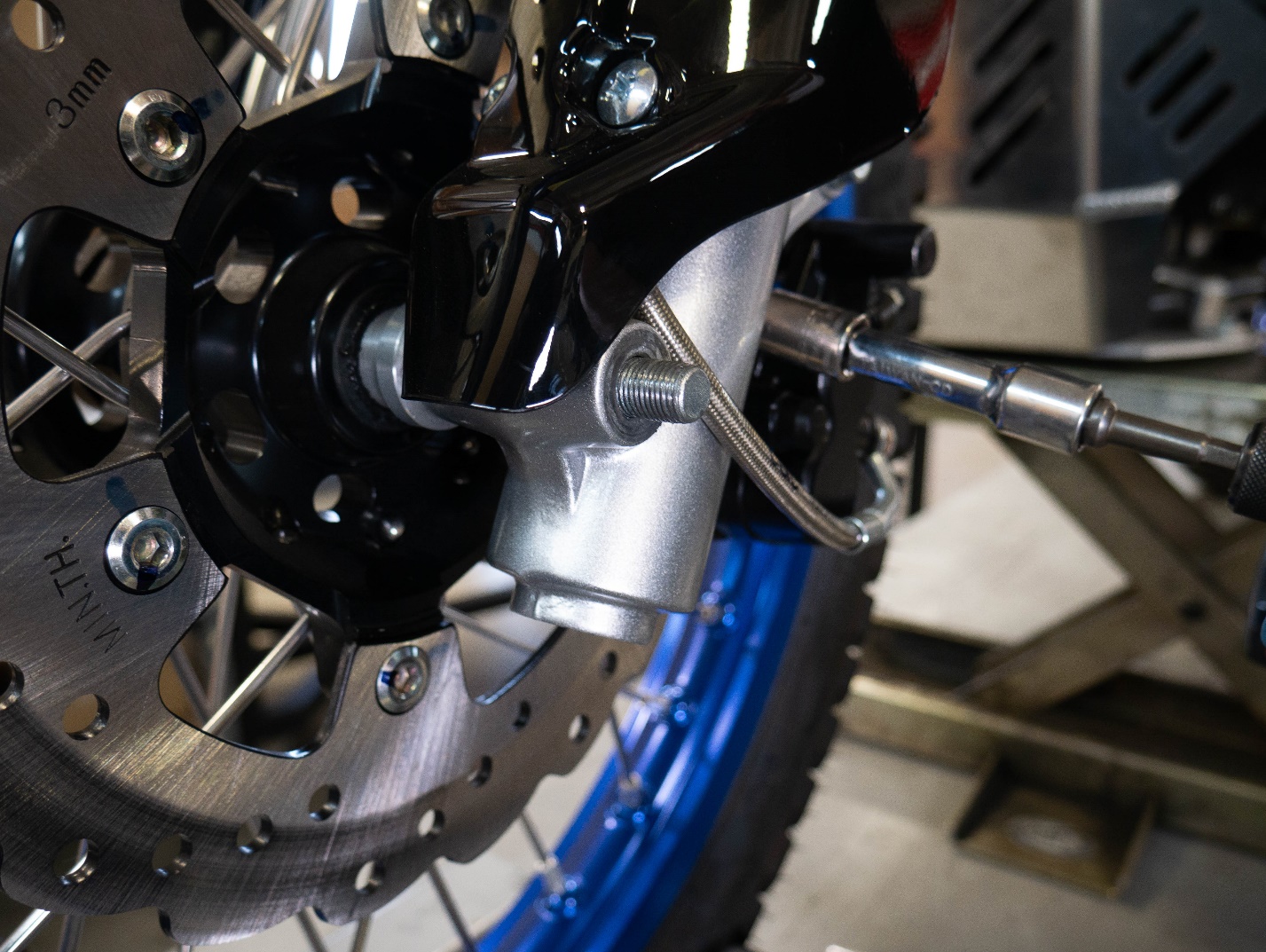

Remove the axle nut using a 19mm socket.

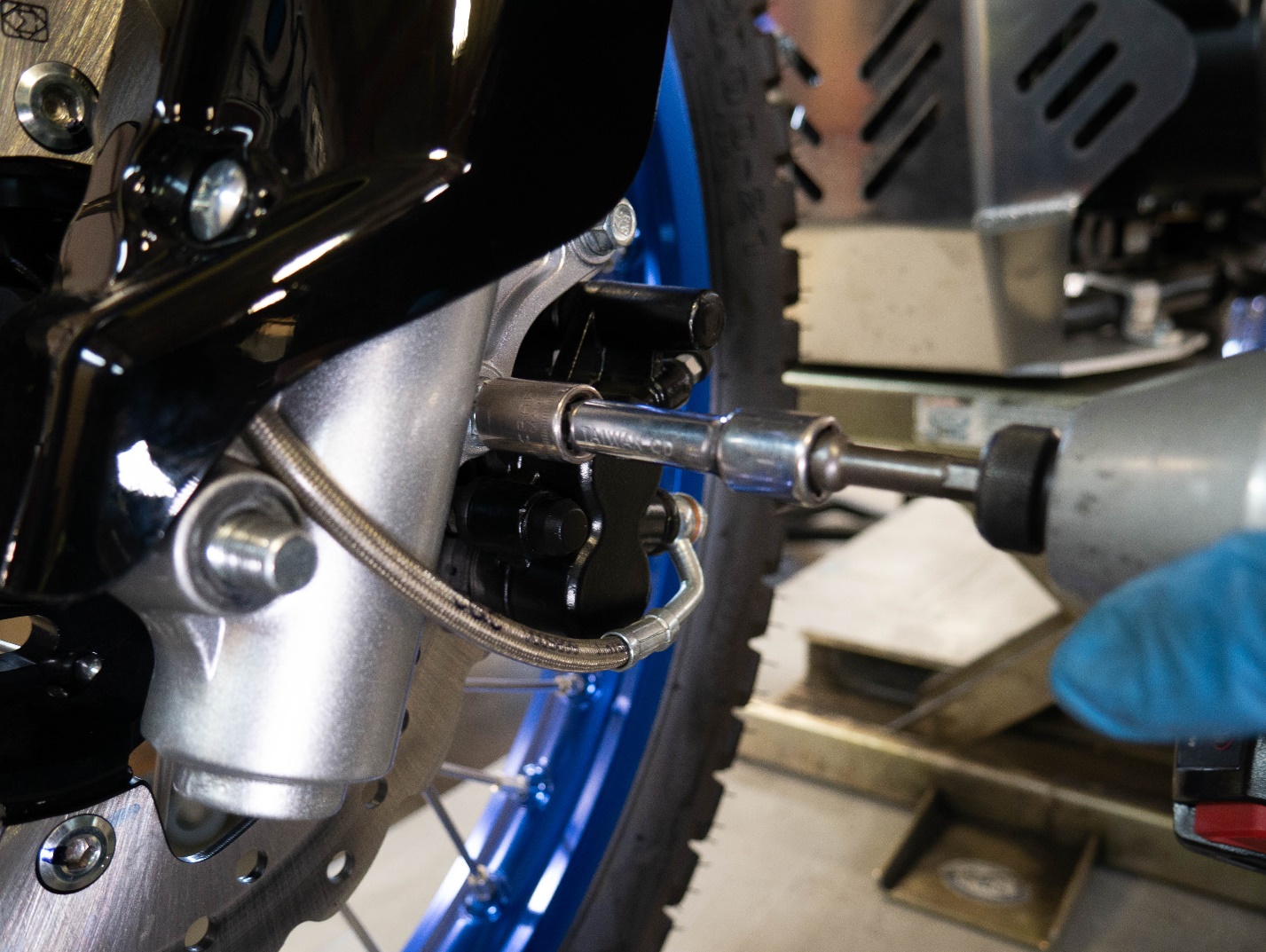

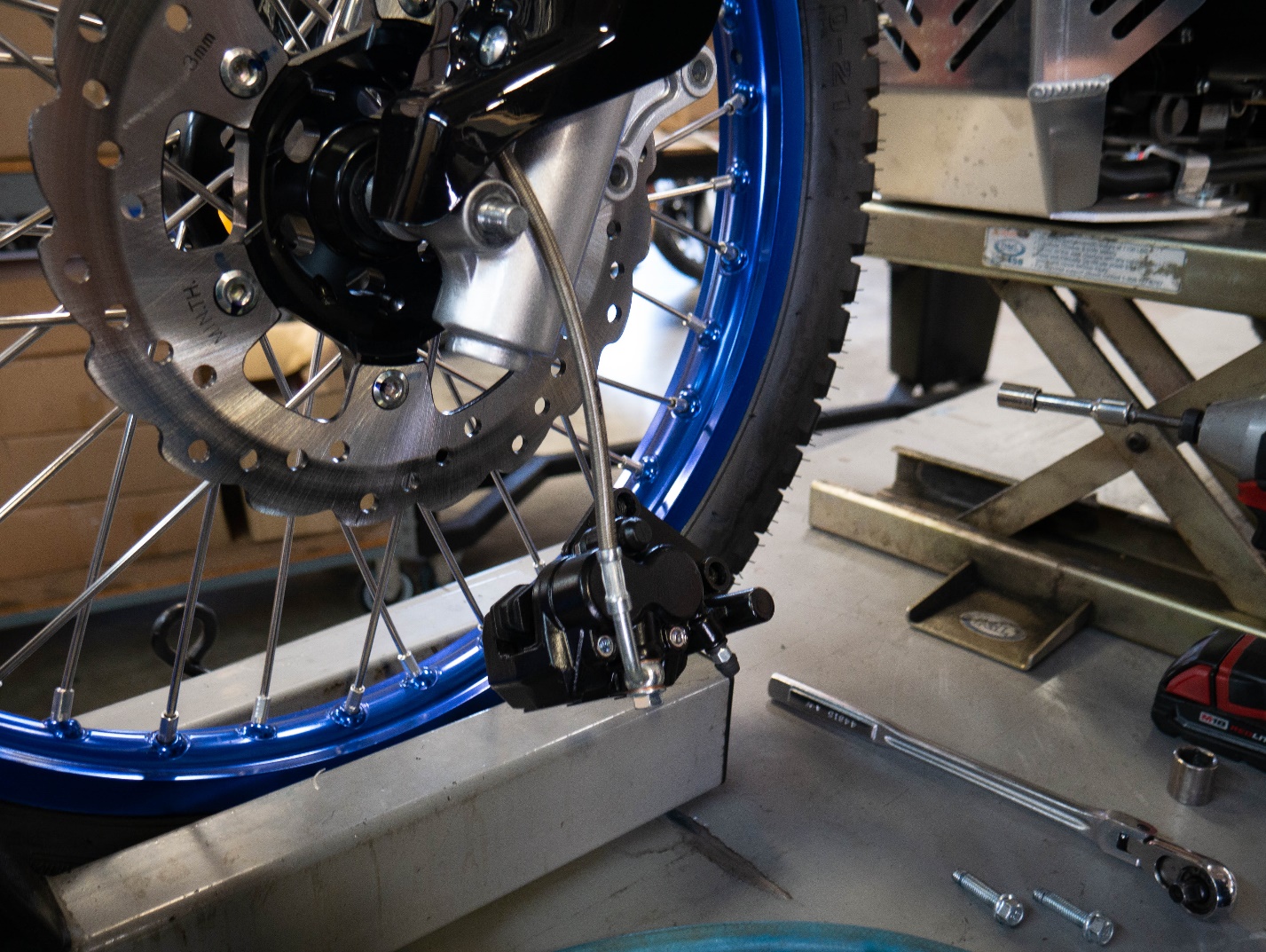

Remove the brake caliper using a 12mm socket.

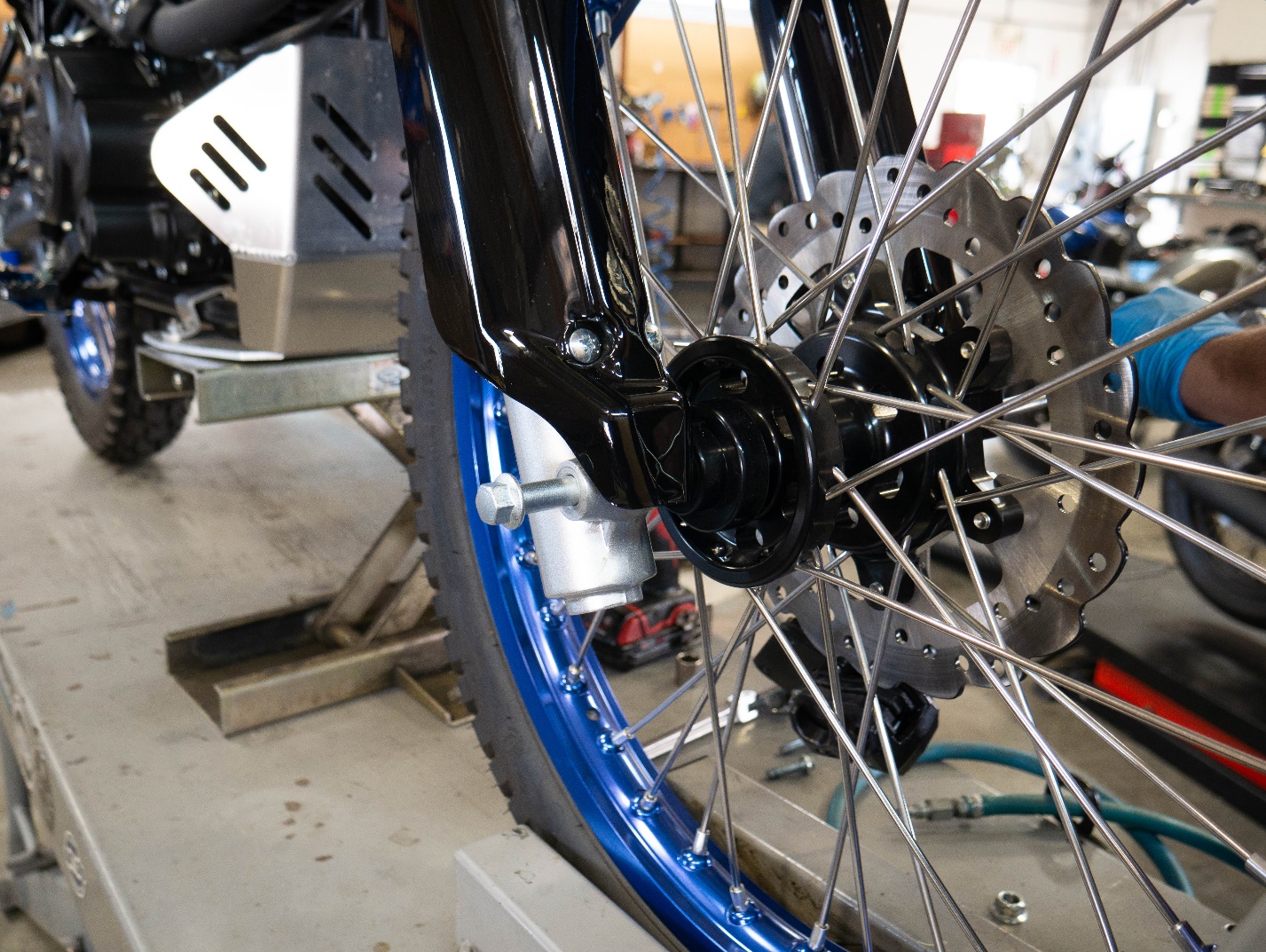

Remove the front axle.

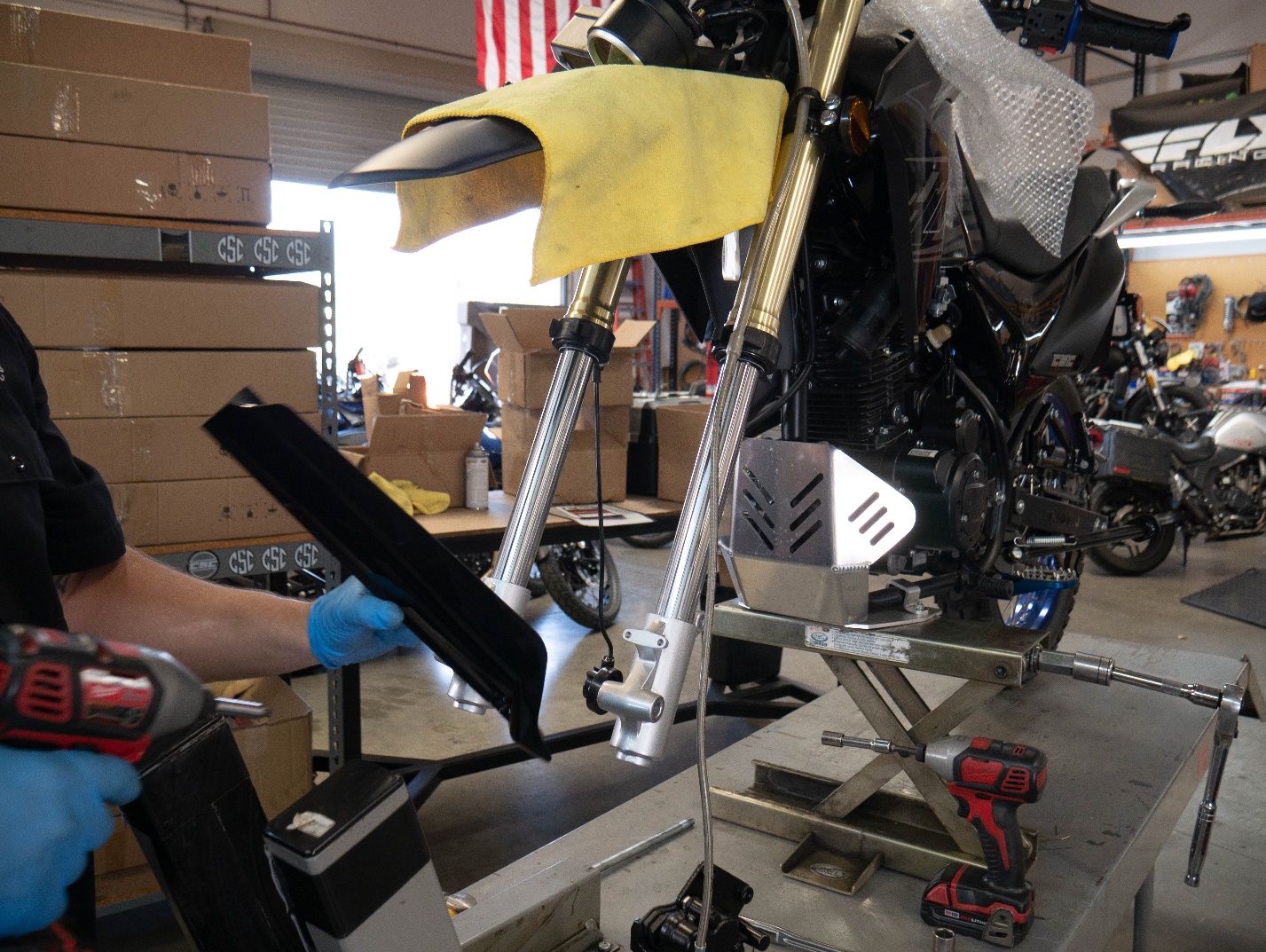

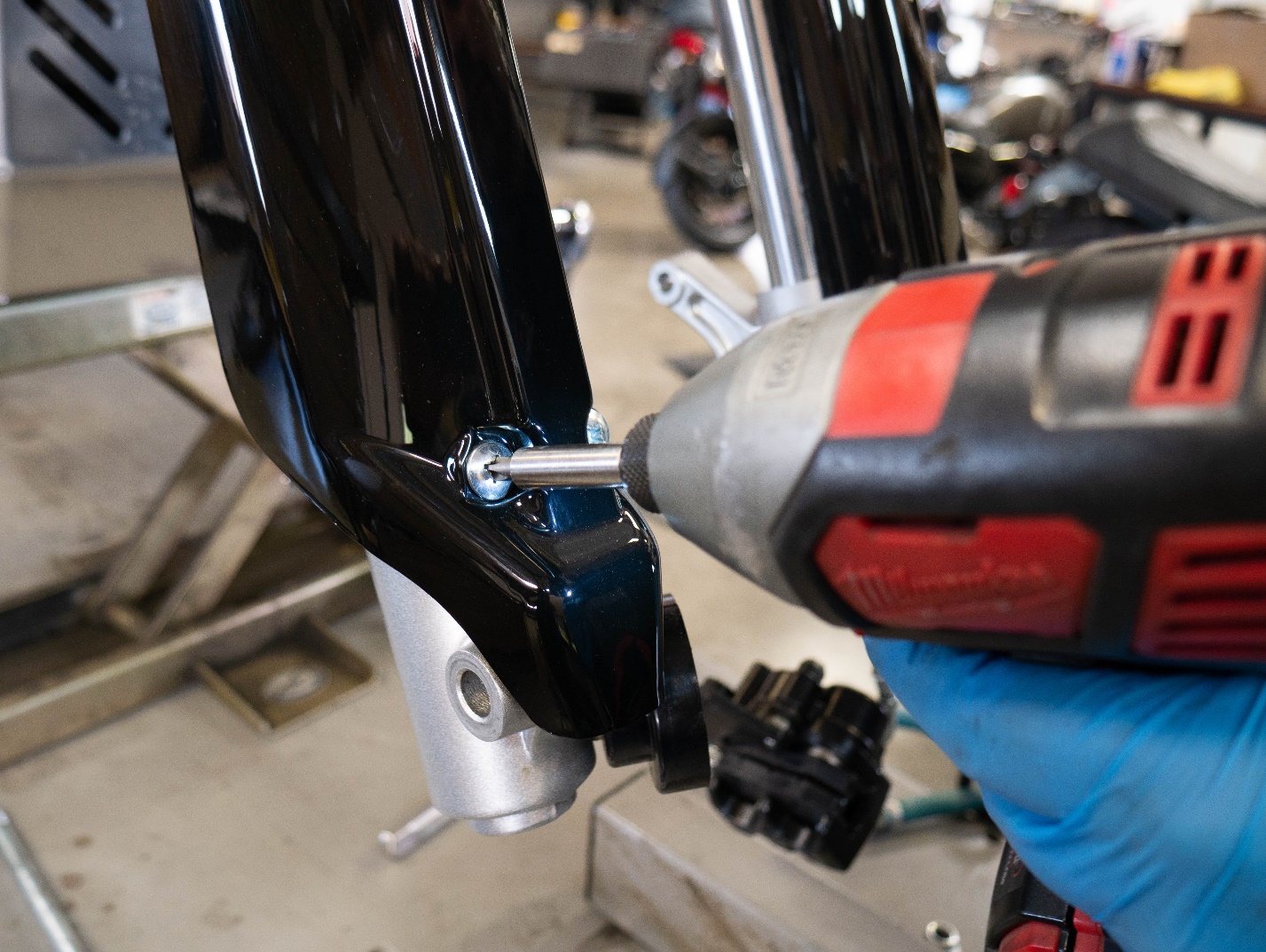

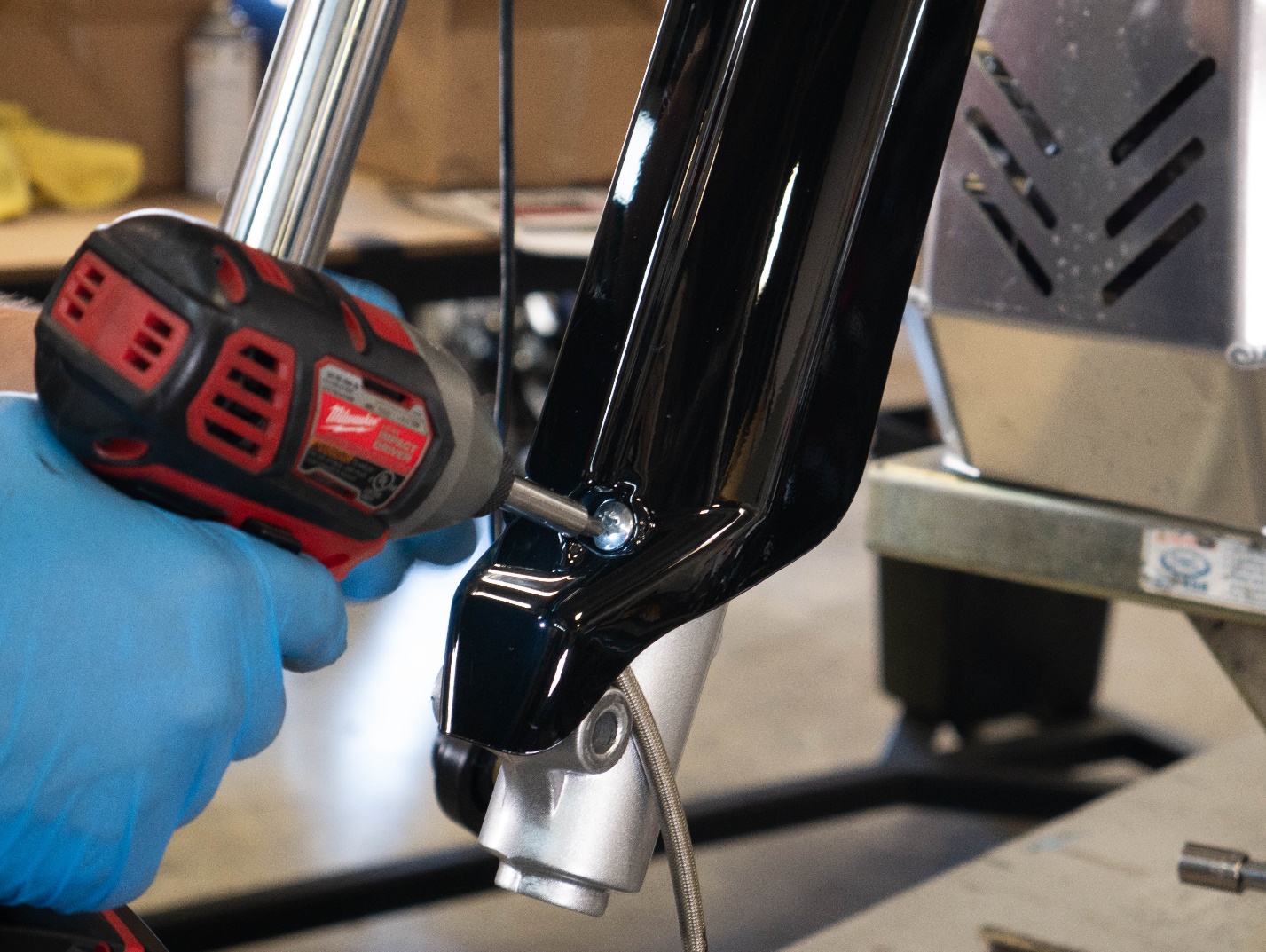

Remove the fork guards using a Phillips screwdriver.
If needed to slide out the forks, remove the triple tree fork tube pinch bolts using a 10mm socket.

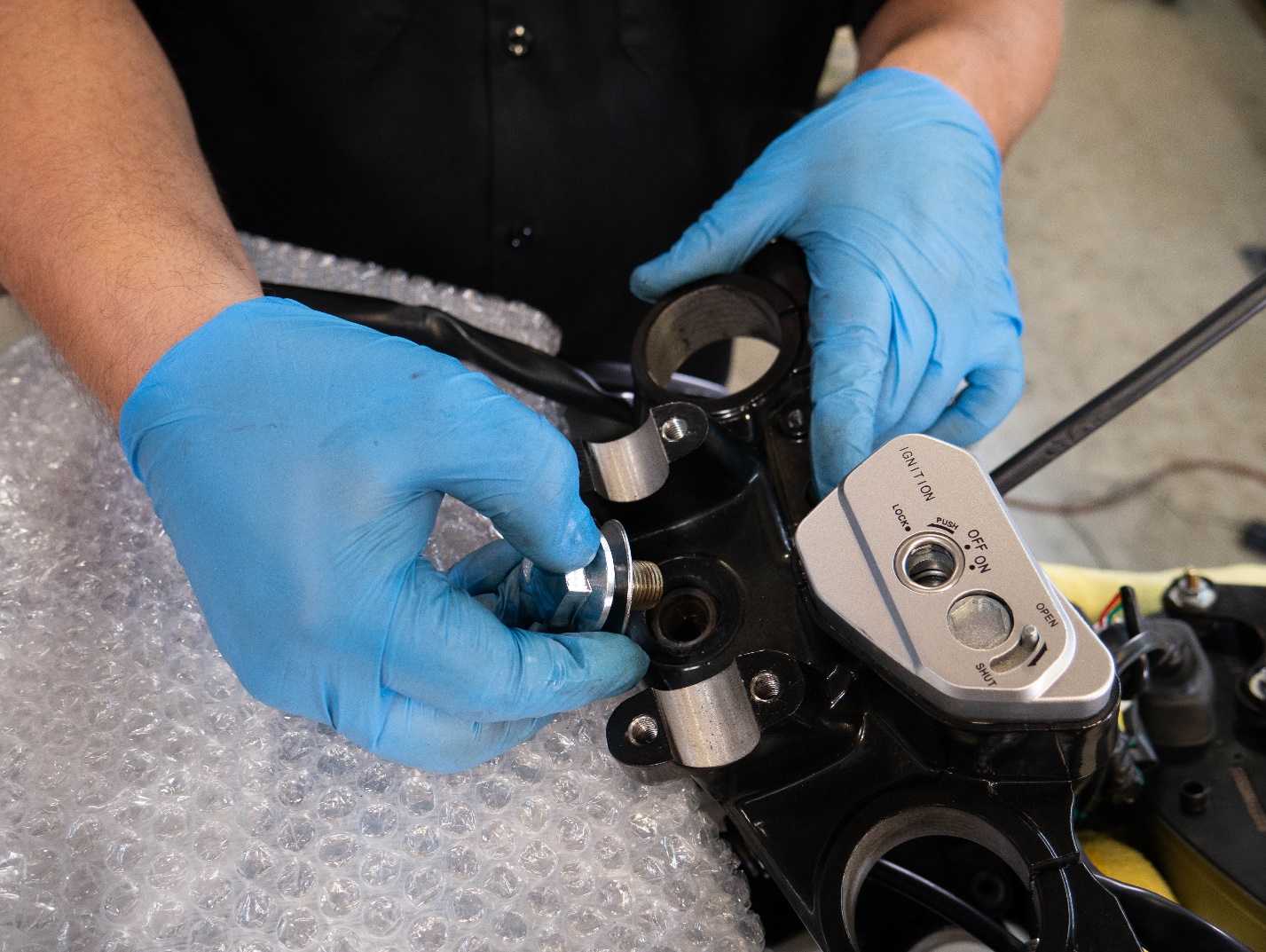

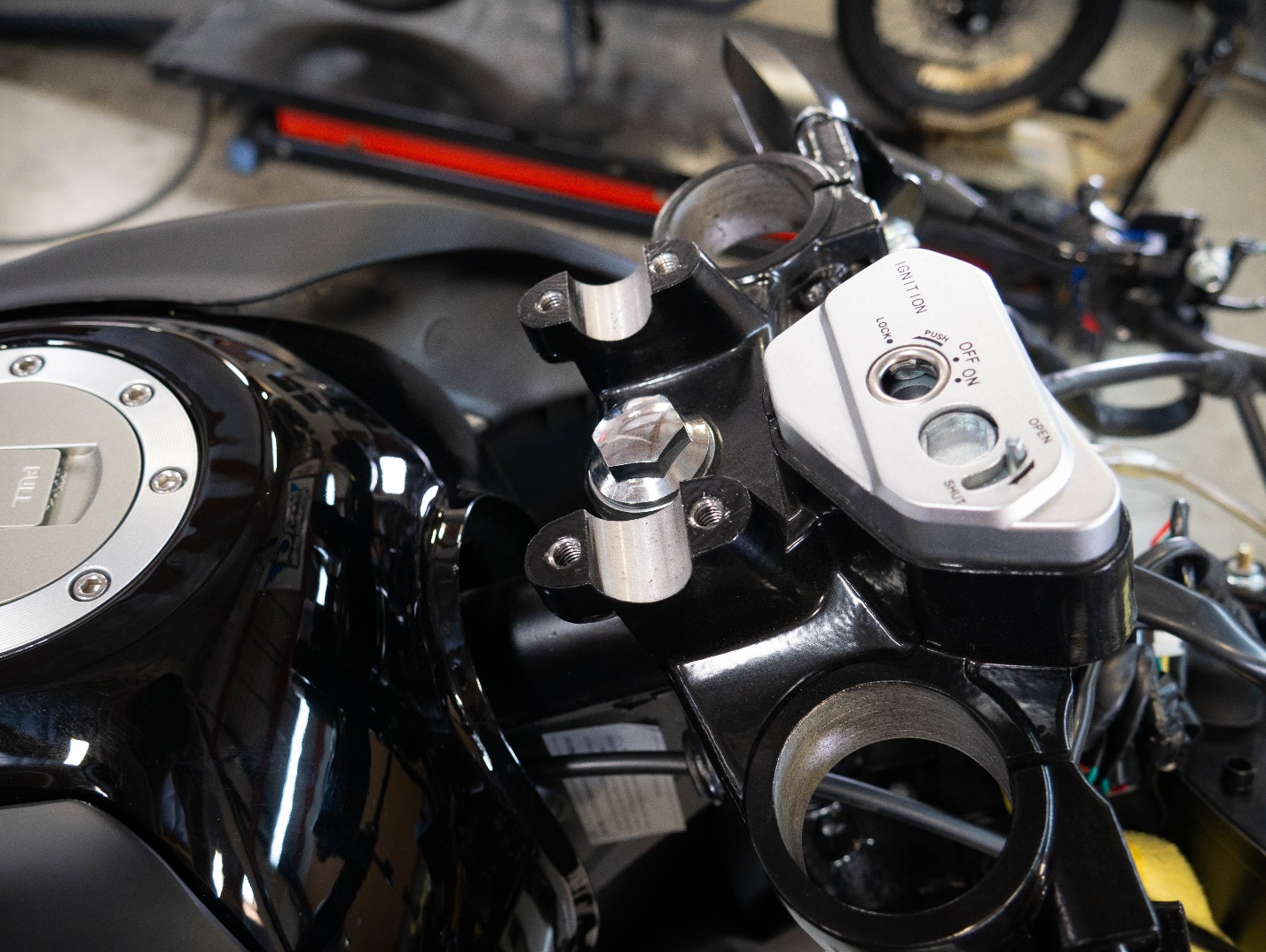

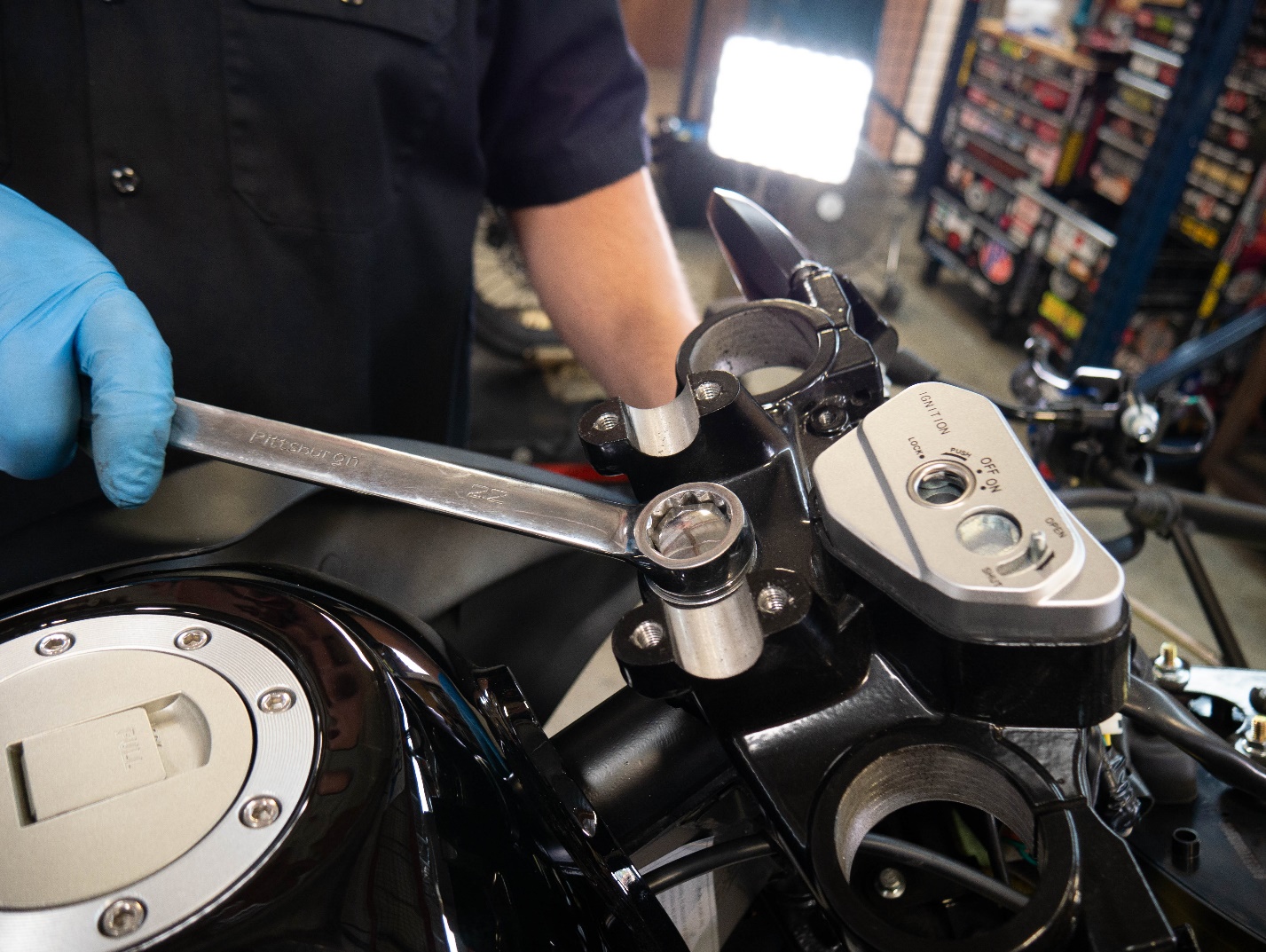

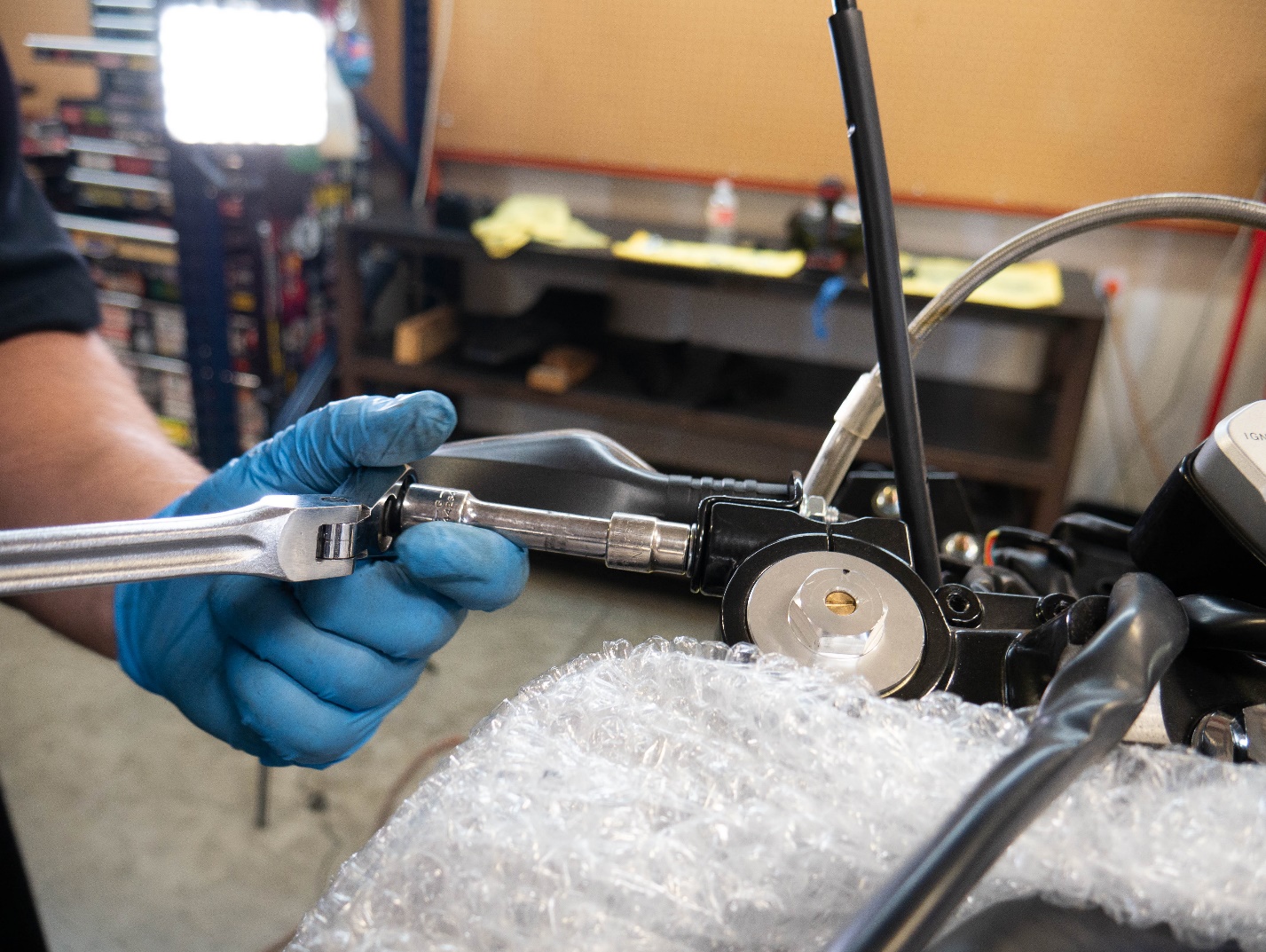

Remove the neck stem top bolt using a 22mm wrench.

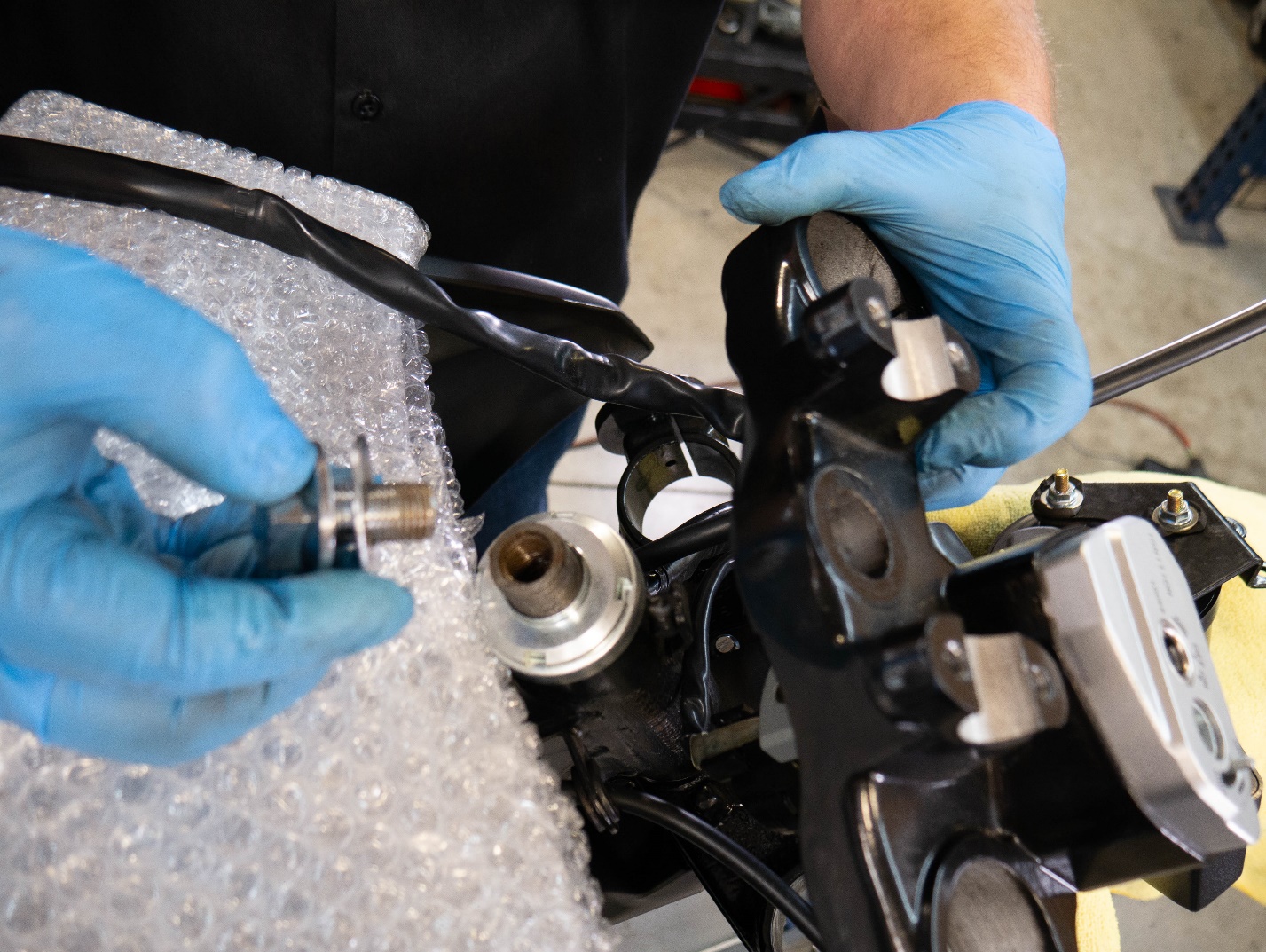

Remove the top triple clamp.

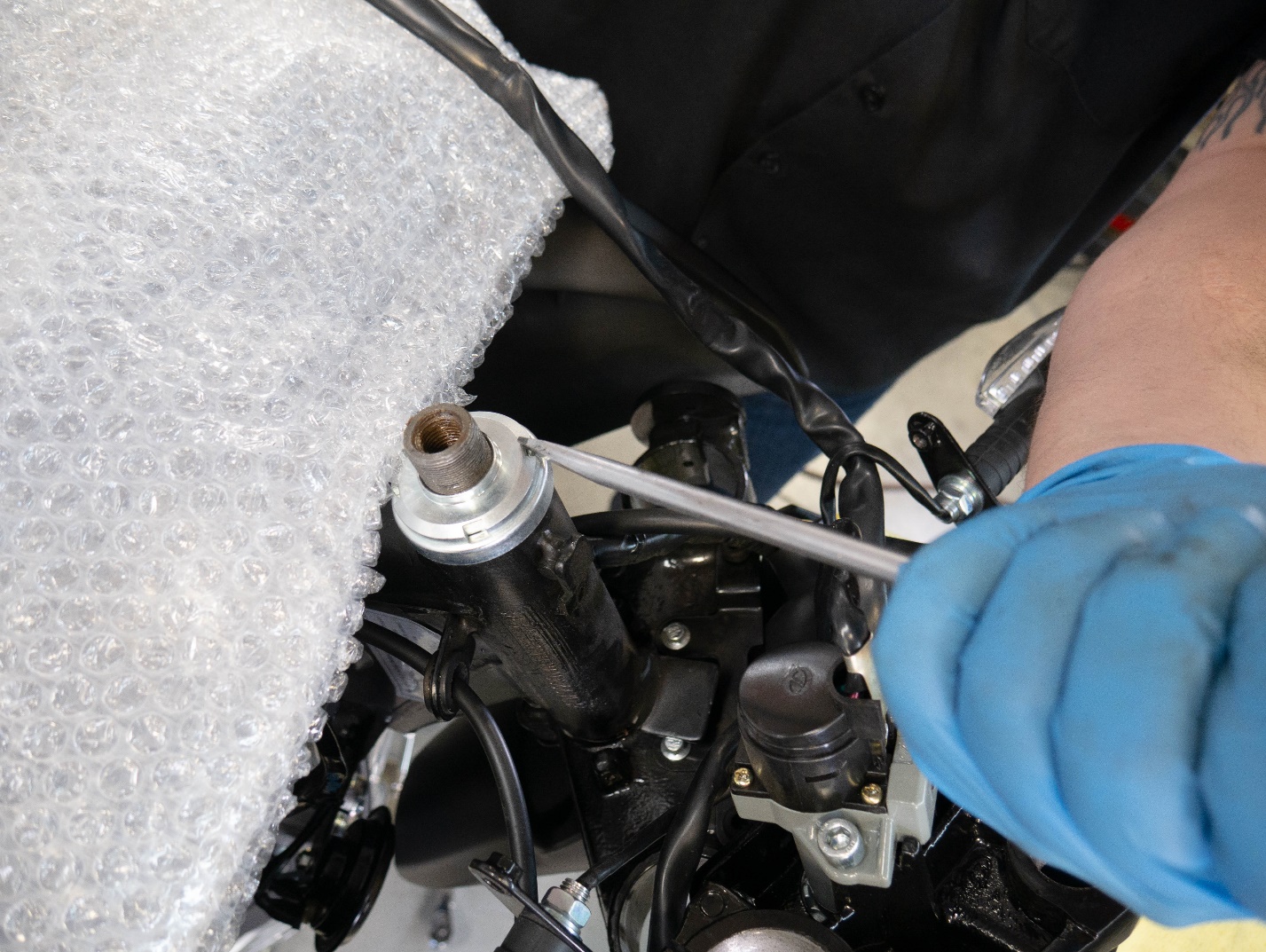

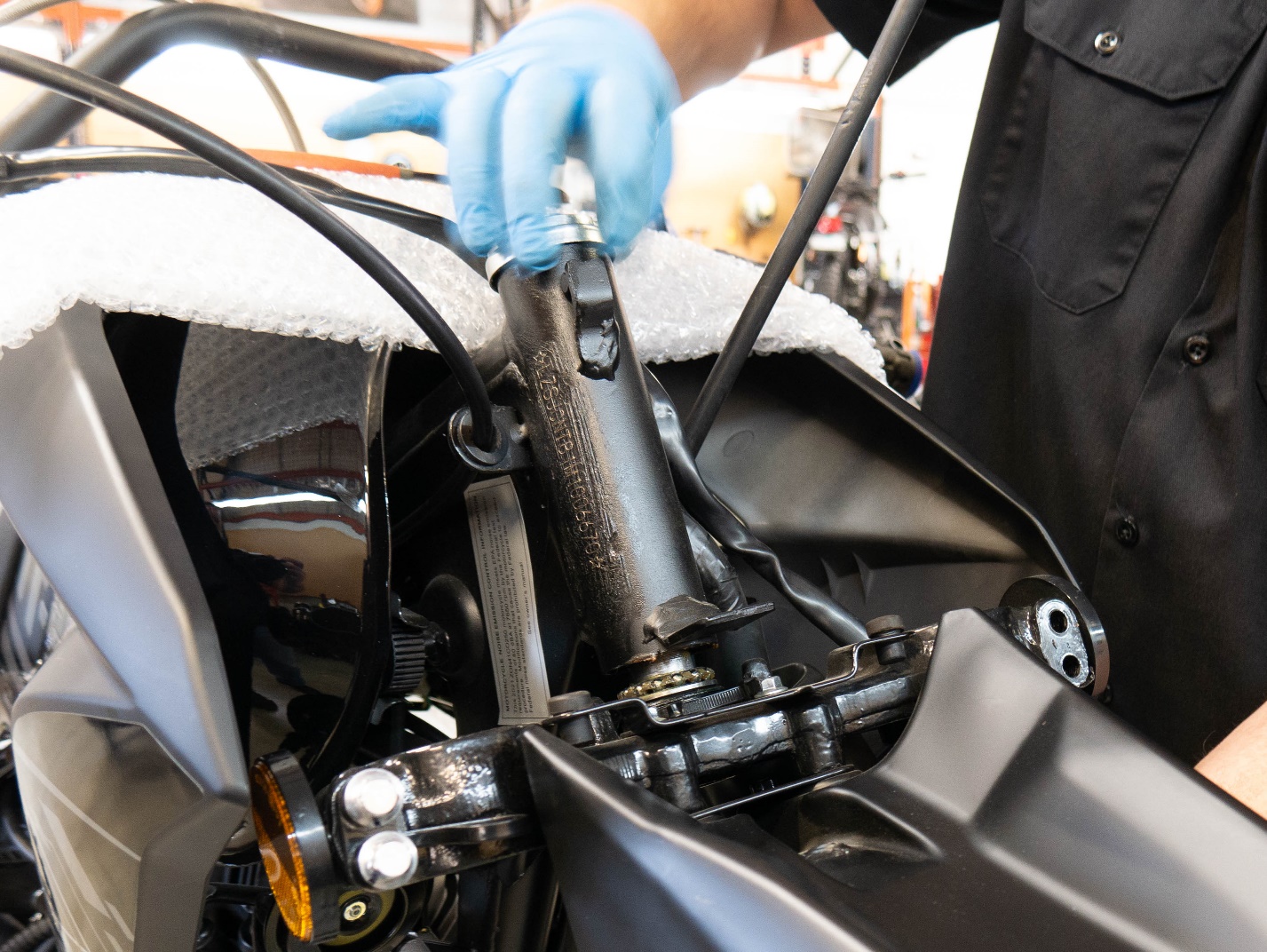

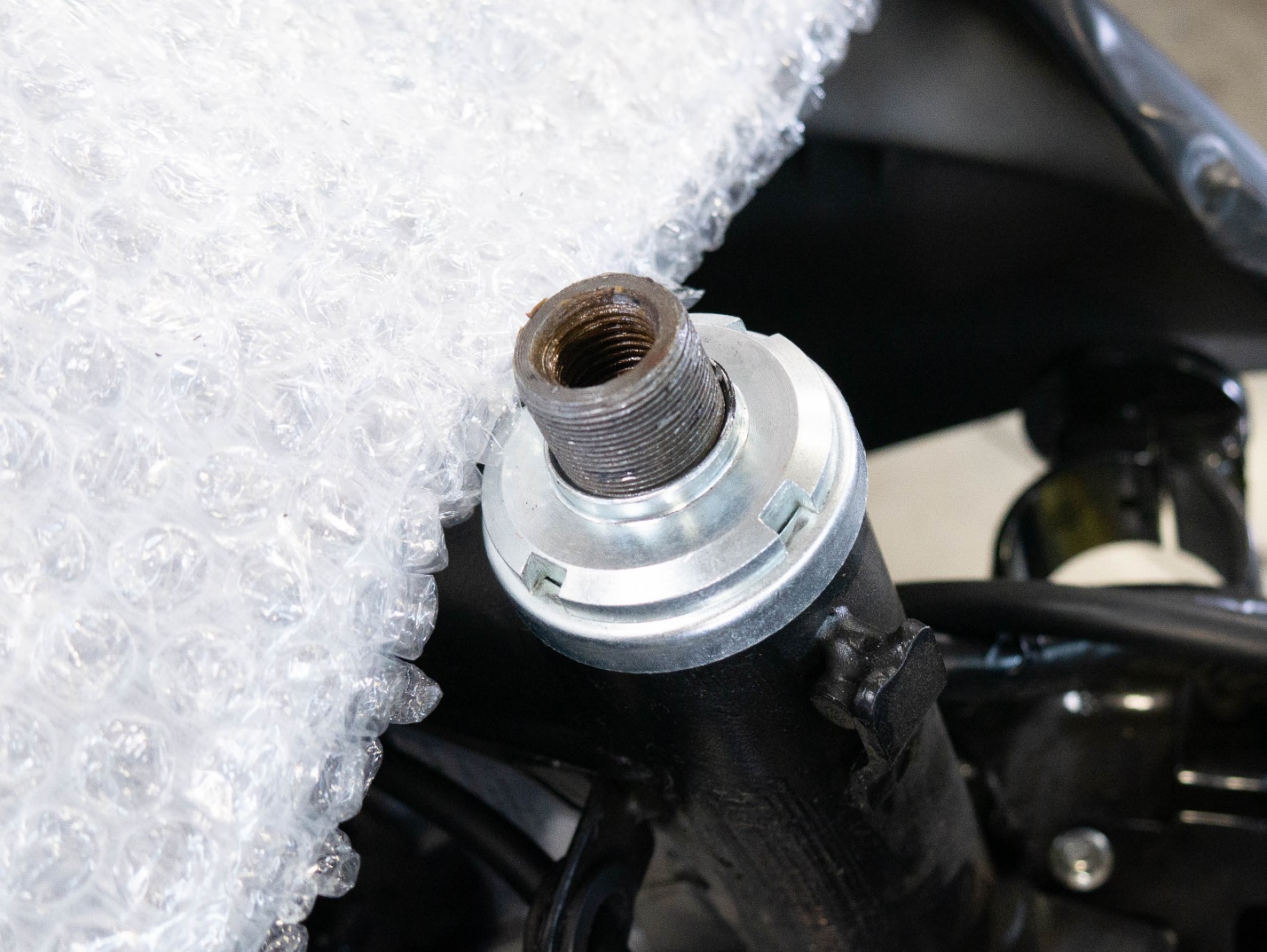

Remove the steering adjuster using a large flathead screwdriver (or punch) and hammer.

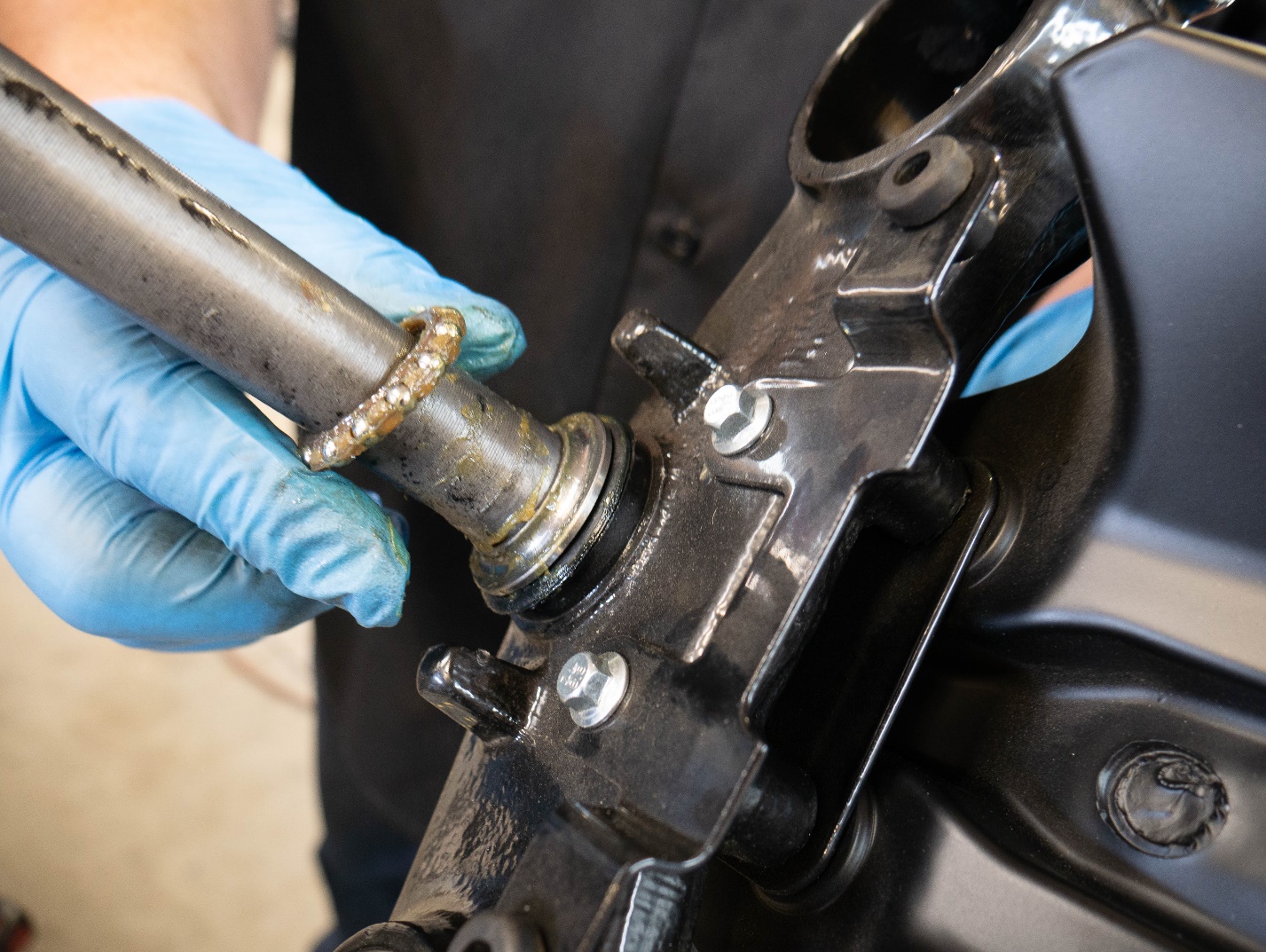

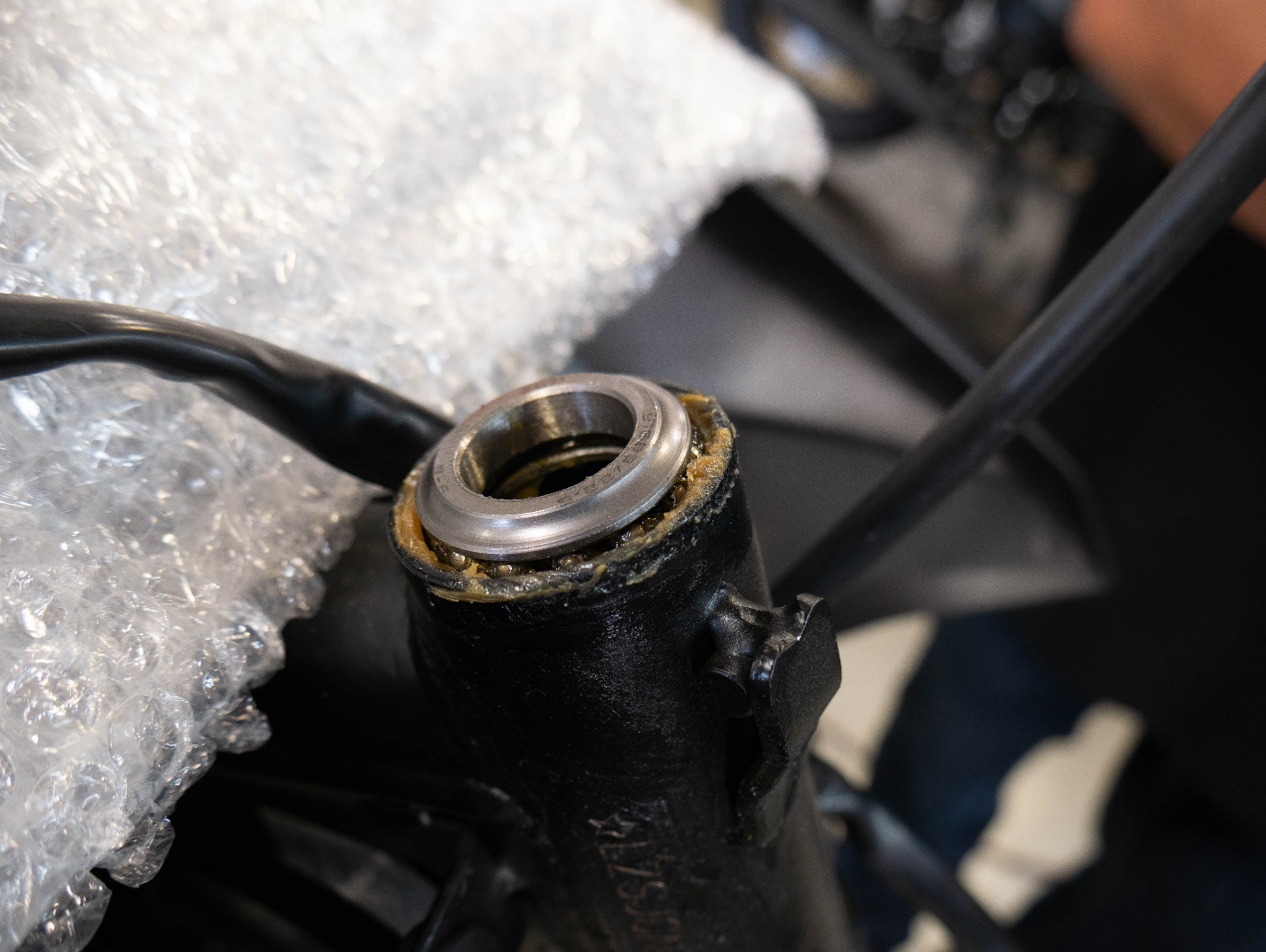

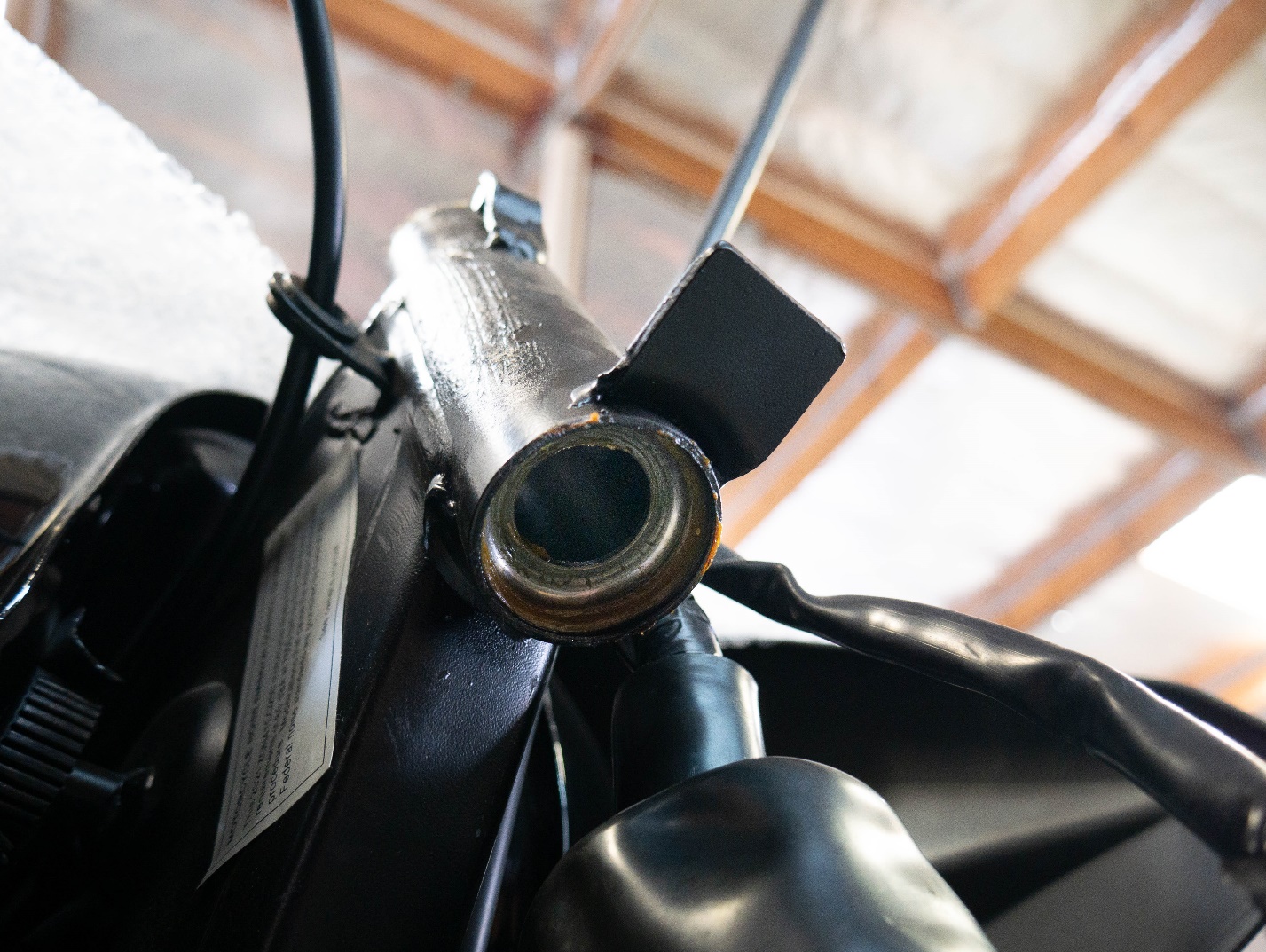

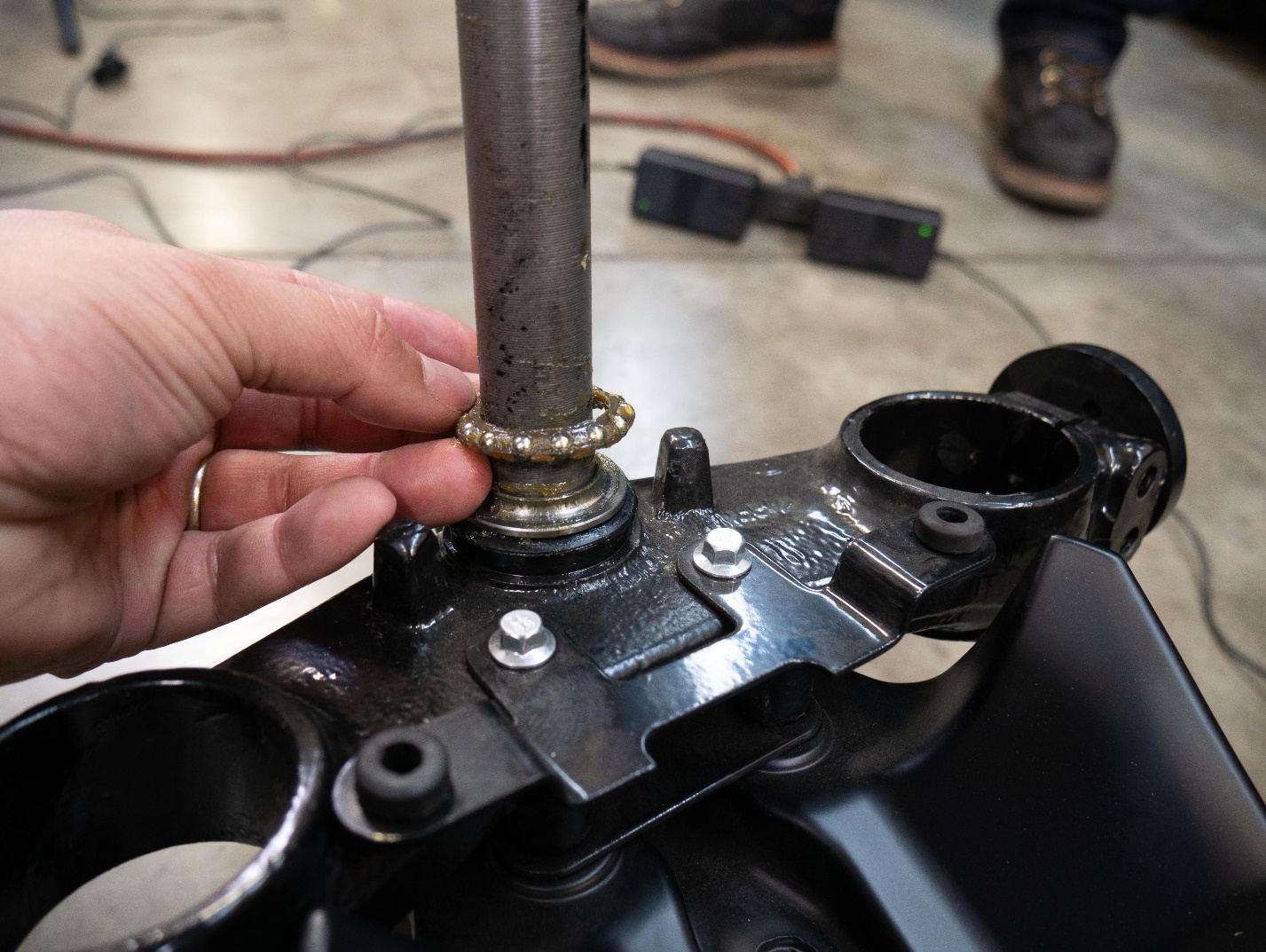

Replace the bearings.
Replace the bearings.
Reassemble front end.
